Trunk / Liftgate: Service and Repair

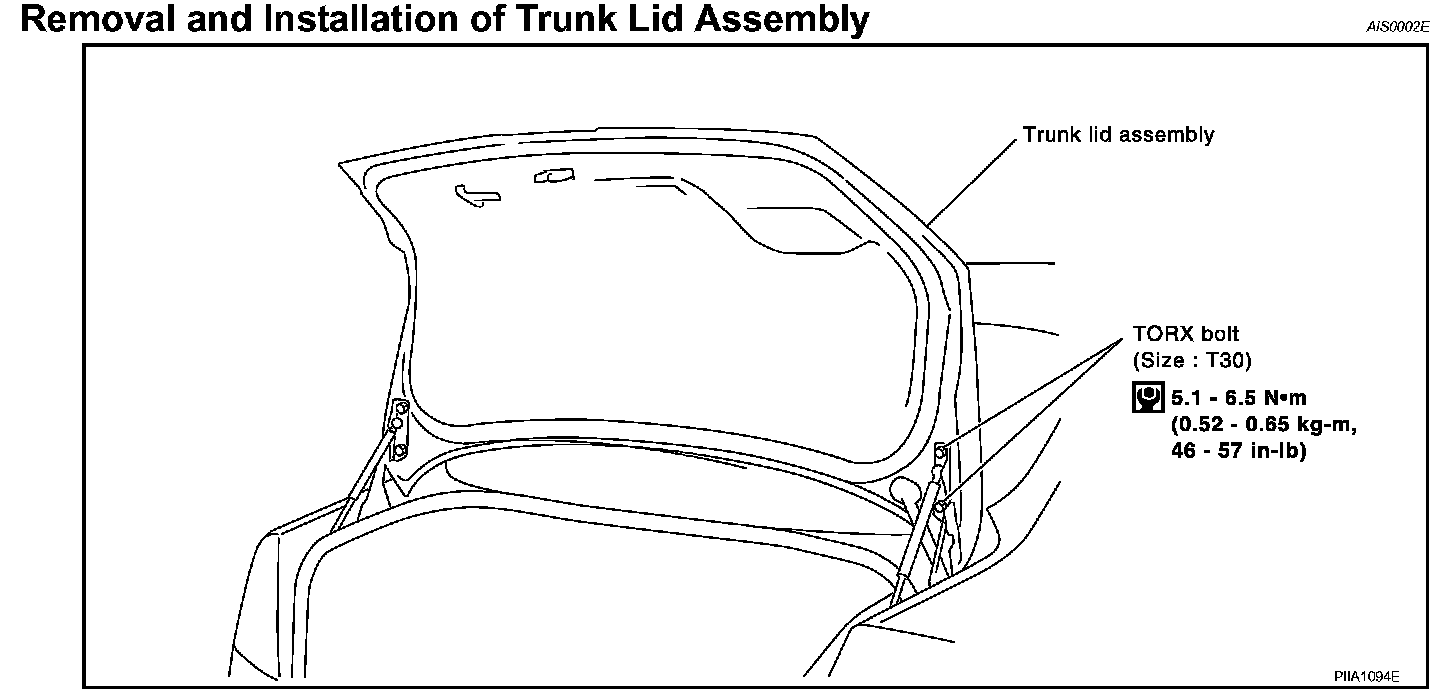

Removal and Installation of Trunk Lid Assembly
1. Disconnect the connectors in the trunk lid and remove the harness clamps to pull the harness out of the trunk lid.




2. Insert flat-bladed screwdriver into the gap and remove holder.
3. Remove trunk lid stay (gas stay).
4. Remove the mounting bolts and remove the trunk lid assembly.

CAUTION: After installing, apply touch-up paint (the body color) onto the head of the hinge mounting bolts.

Install in the reverse order of removal.
