Reading and Clearing Diagnostic Trouble Codes

CONSULT-II Function

"RETAINED PWR"
1. Turn ignition switch "OFF".




2. Connect "CONSULT-II" to the data link connector.
3. Turn ignition switch "ON".




4. Touch "START".

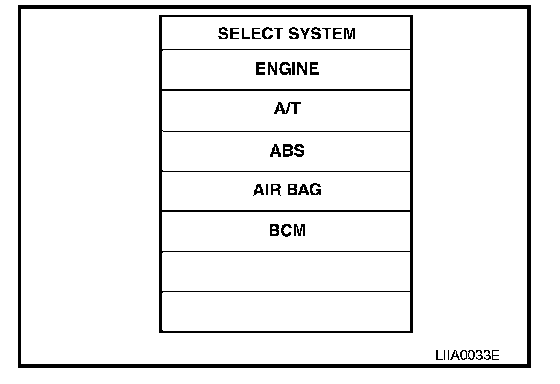

5. Touch "BCM".




6. Touch "RETAINED PWR".




7. Select diagnosis mode. "DATA MONITOR", "ACTIVE TEST" and "WORK SUPPORT" are available.
