Rear Seat

REAR SEAT

Removal and Installation

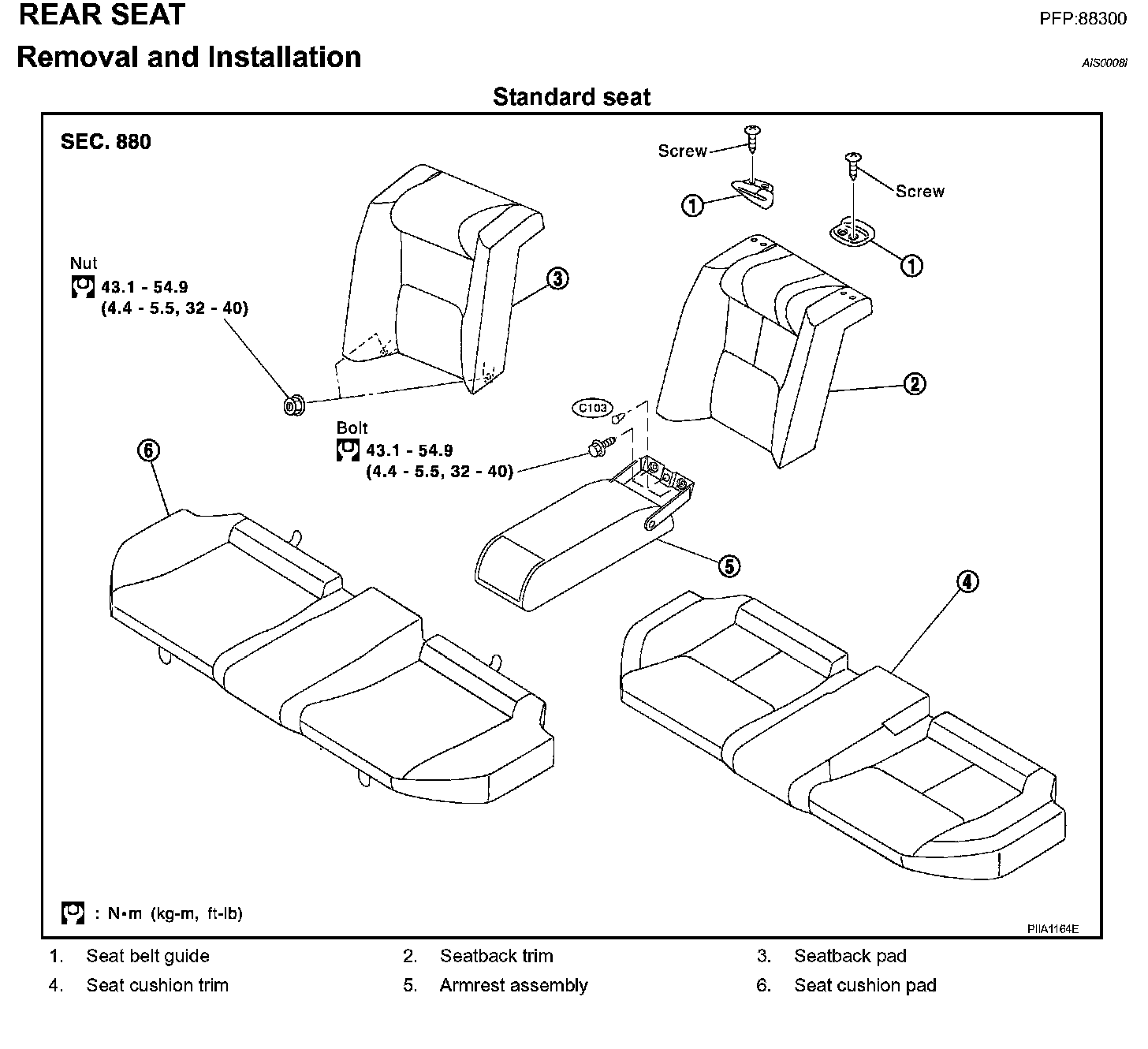

Standard seat

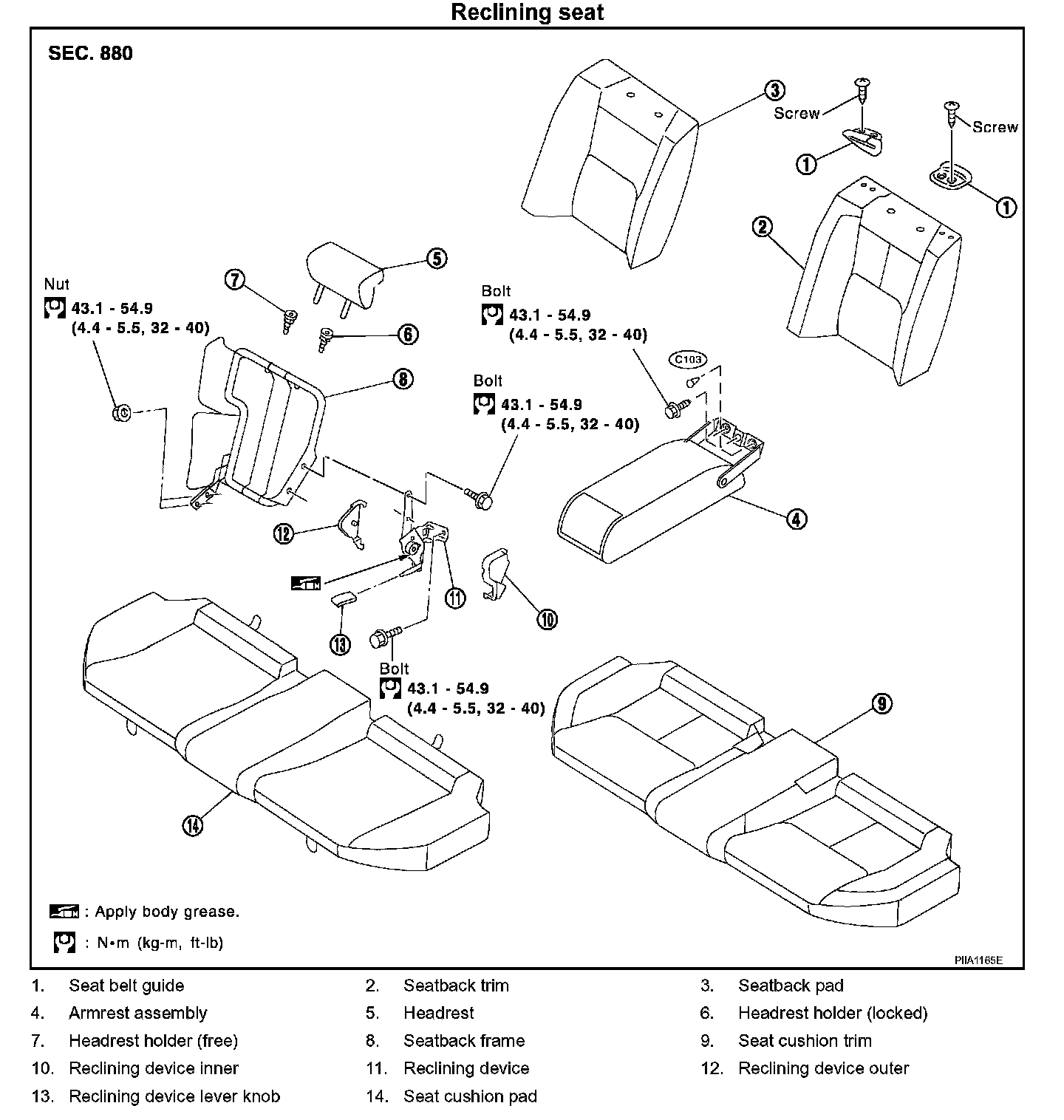

Reclining seat

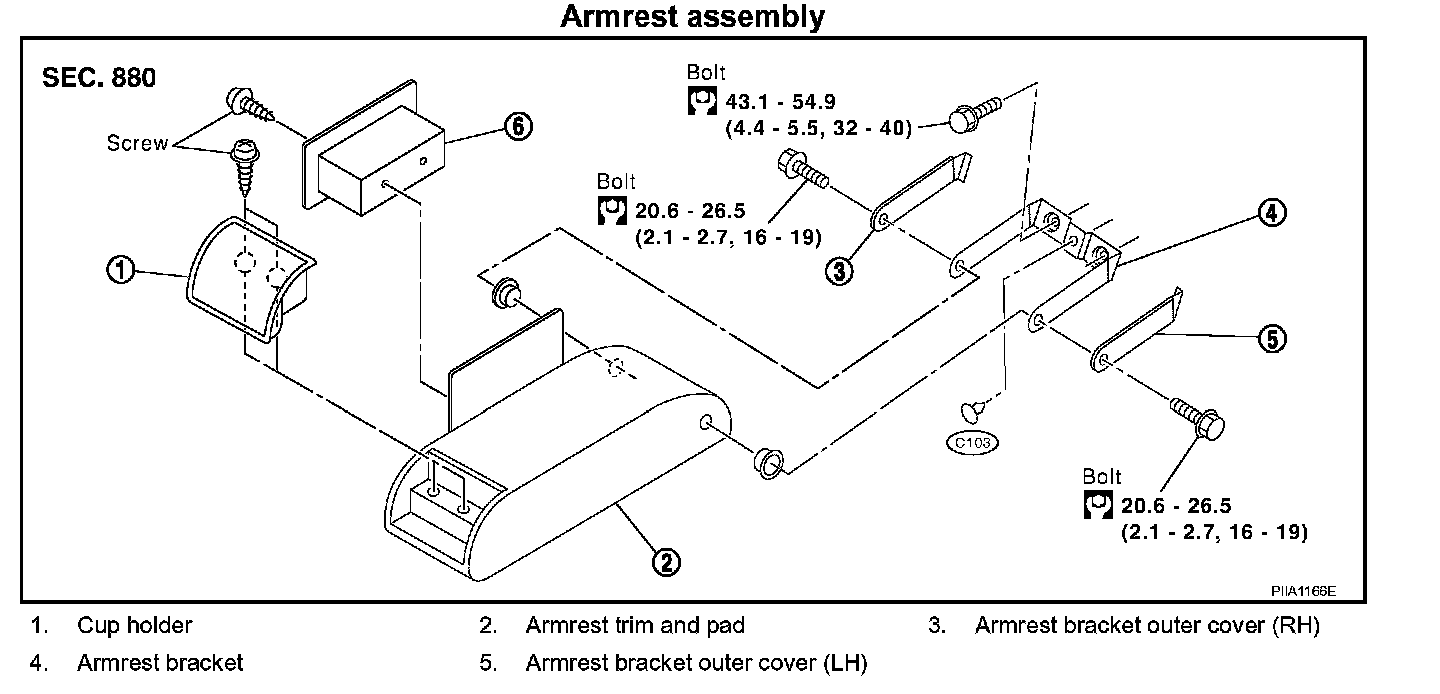

Armrest assembly




Rear seat center back finisher




REMOVAL

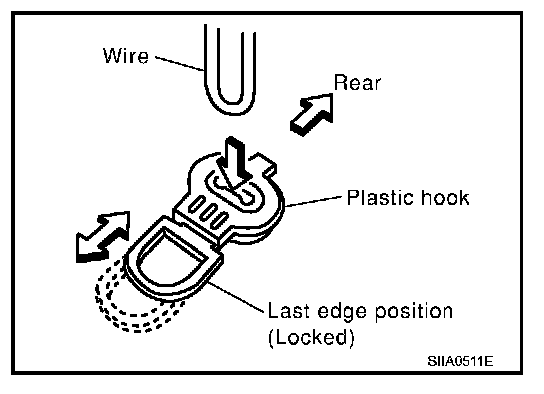

1. Pull the lock at the front bottom of the seat cushion forward (1 for each side) and pull the seat cushion upward to release the wire from the plastic hook then pull the seat cushion forward to remove.

INSTALLATION
- Install in the reverse order of removal.
