Component Tests and General Diagnostics

INSPECTION





^ While depressing the parking brake pedal to specified amount of force. Check that the pedal stroke is within the range of the specified stroke amount.
Number of notches : 3 - 4
^ Check that warning lamp comes on when parking brake pedal is depressed with in one notch.

ADJUSTMENT





1. Insert a deep-well socket wrench to rotate the self-locking nut to loosen the cable sufficiently. Then, after returning the pedal completely, adjust the clearance of the rear shoes.
2. Remove the road wheels.
3. Using a wheel nut, fix the disc to the hub preventing it from tilting.





4. Remove the adjuster hole plug installed on the disc. Using a 7 screwdriver, turn the disc to clock wise as shown in the figure until the disc is locked. After locking, turn the adjuster to the opposite direction by 5 or 6 notches.
5. Rotate the disc to make sure that there is no drag. Then install the adjuster hole plug.
6. After adjusting the clearance of the rear shoes, with no drag on the rear brake, adjust the cable as follows:
a. Operate the pedal 10 or more times with the force of 294 N (30 kg, 66 lbs.).

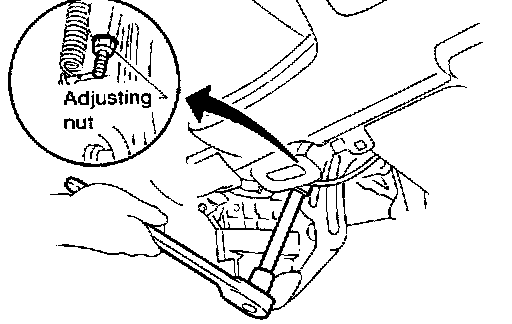

b. Depress the pedal until a deep-well socket can be inserted. Insert the deep-well socket, and rotate the self-locking nut to adjust the pedal stroke.

CAUTION: Do not reuse the self-locking nut after removing it.

c. After operating the pedal 3 to 4 times with the force of 196 N (20 kg, 44 lbs.), make sure that the pedal stroke is within the specified value.
d. With the pedal completely returned, make sure that there is no drag on the rear brake.
