Fuse Block - Junction Box (J/B)
Fuse Block - Junction Box (J/B)

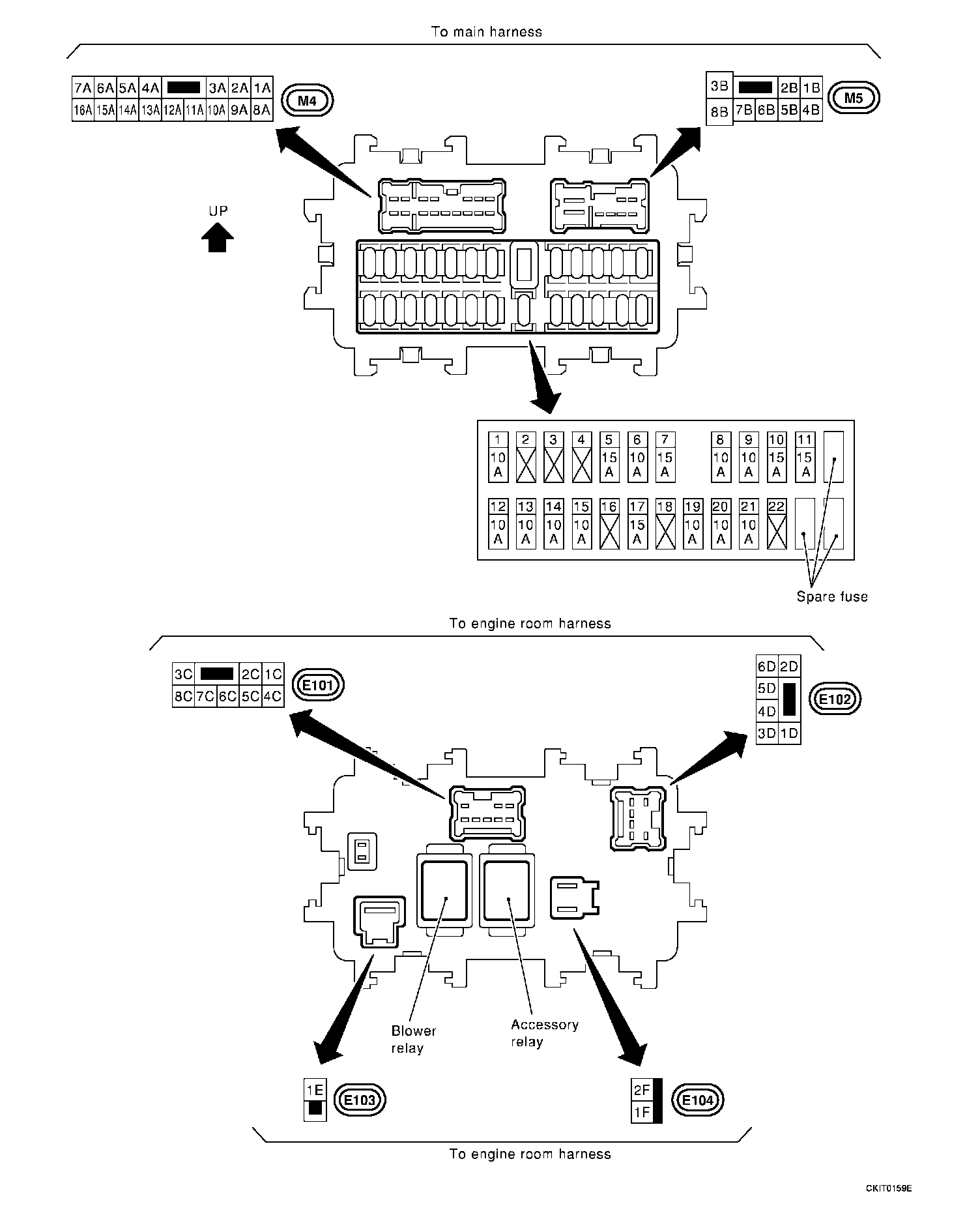

Fuse Block - Junction Box (J/B) - Terminal Arrangement:

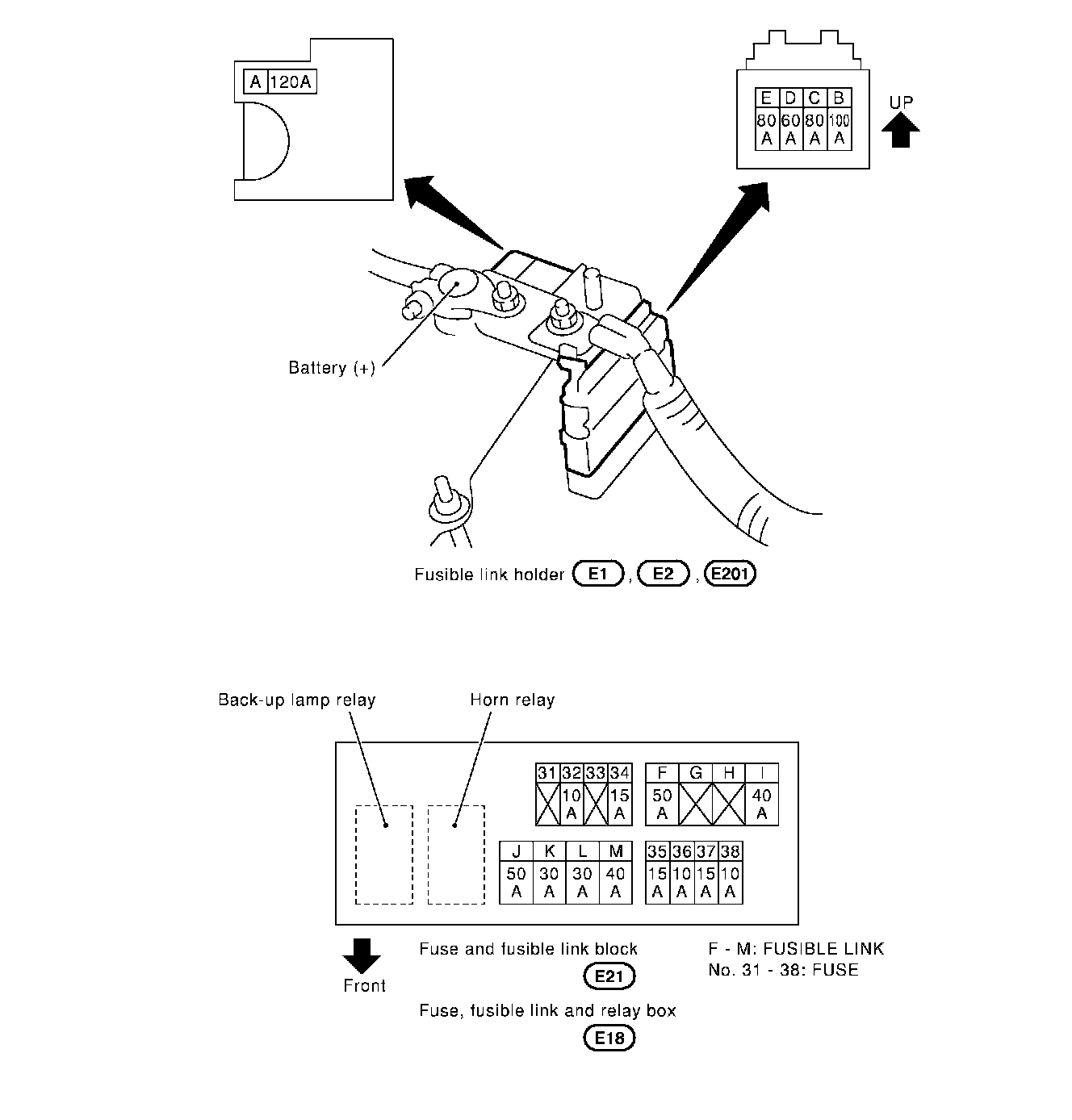

Fuse, Fusible Link And Relay Box - Terminal Arrangement:
