Body Harness Connectors
Body Harness Connectors

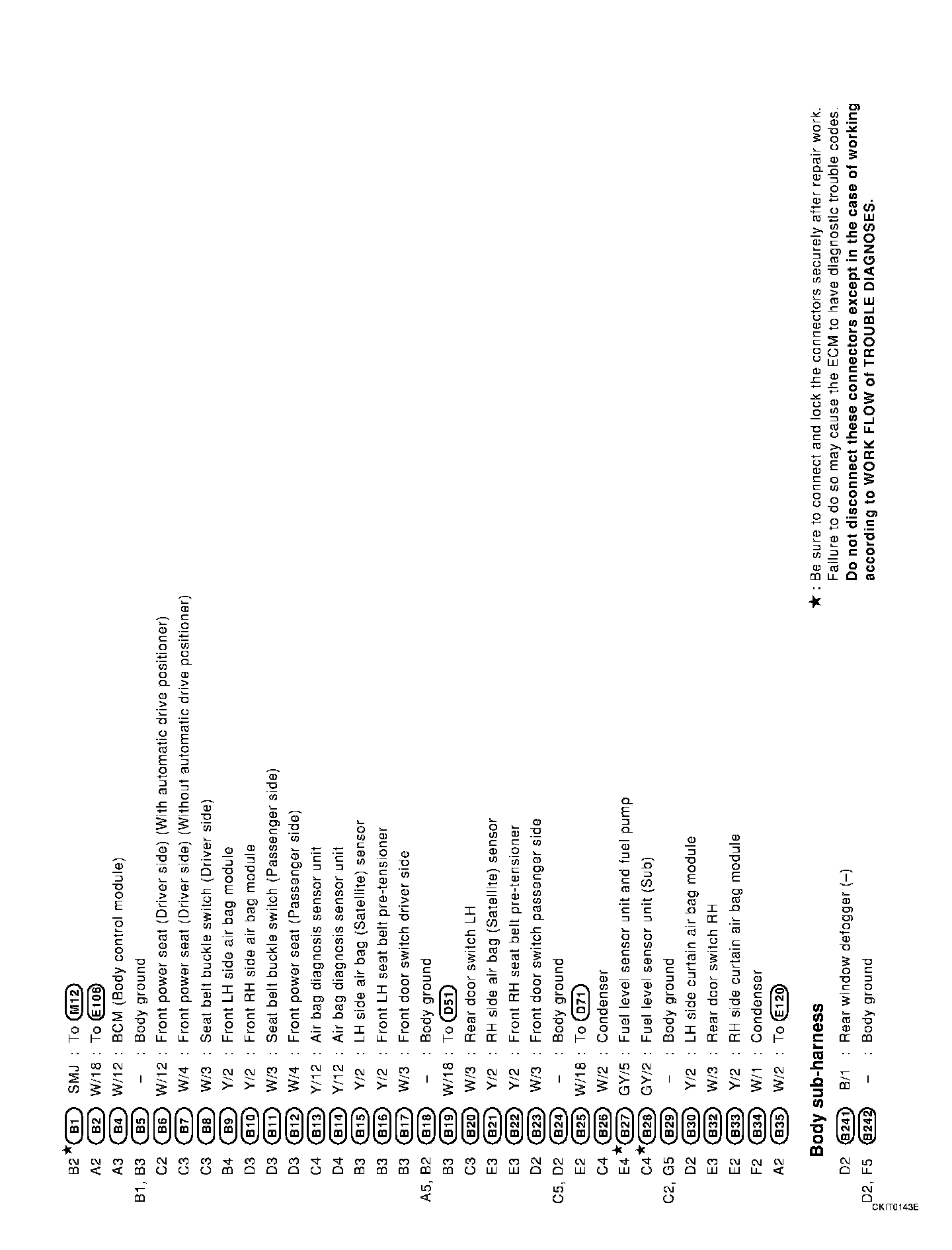

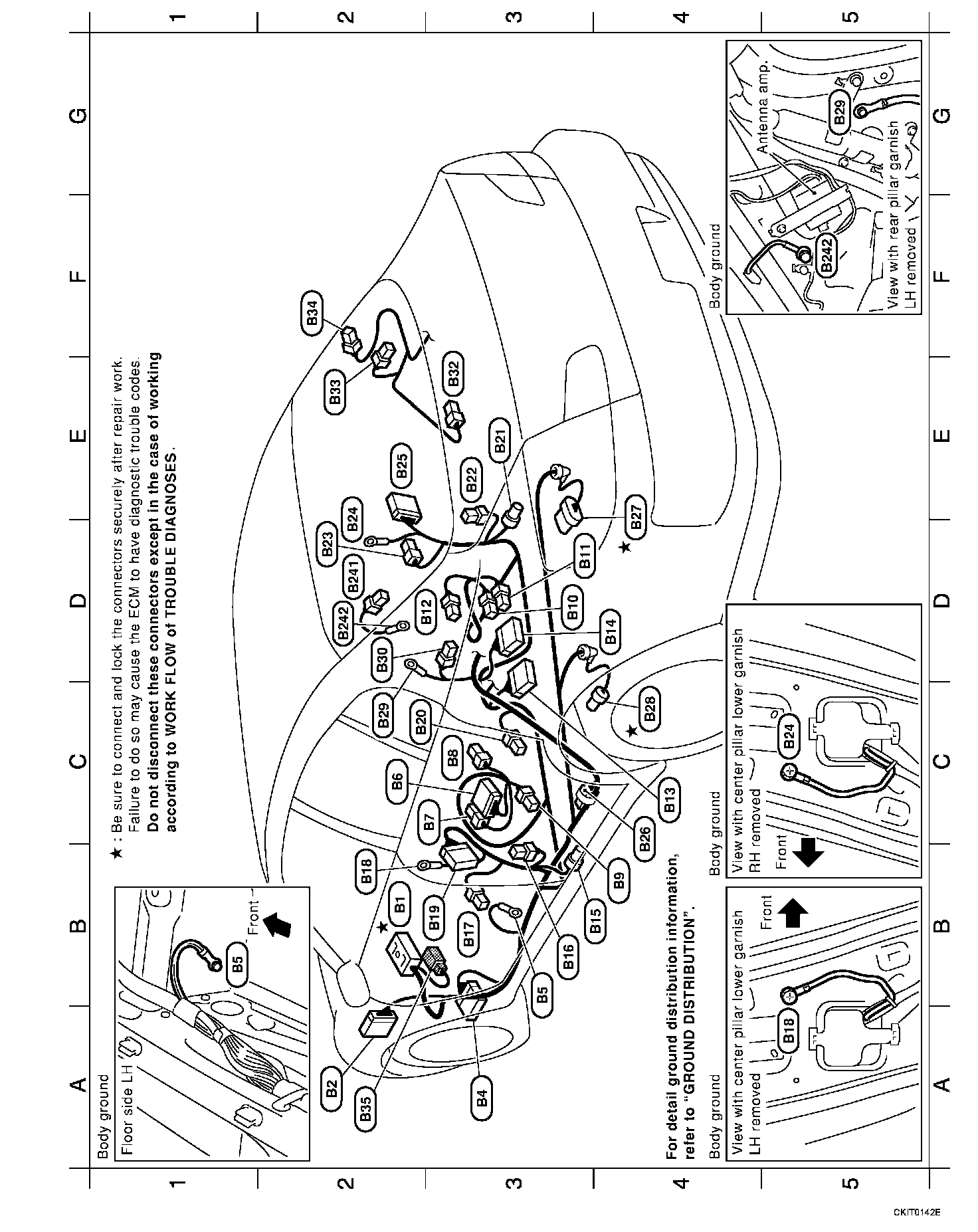

Passenger Compartment Part 1:
Passenger Compartment Part 2:

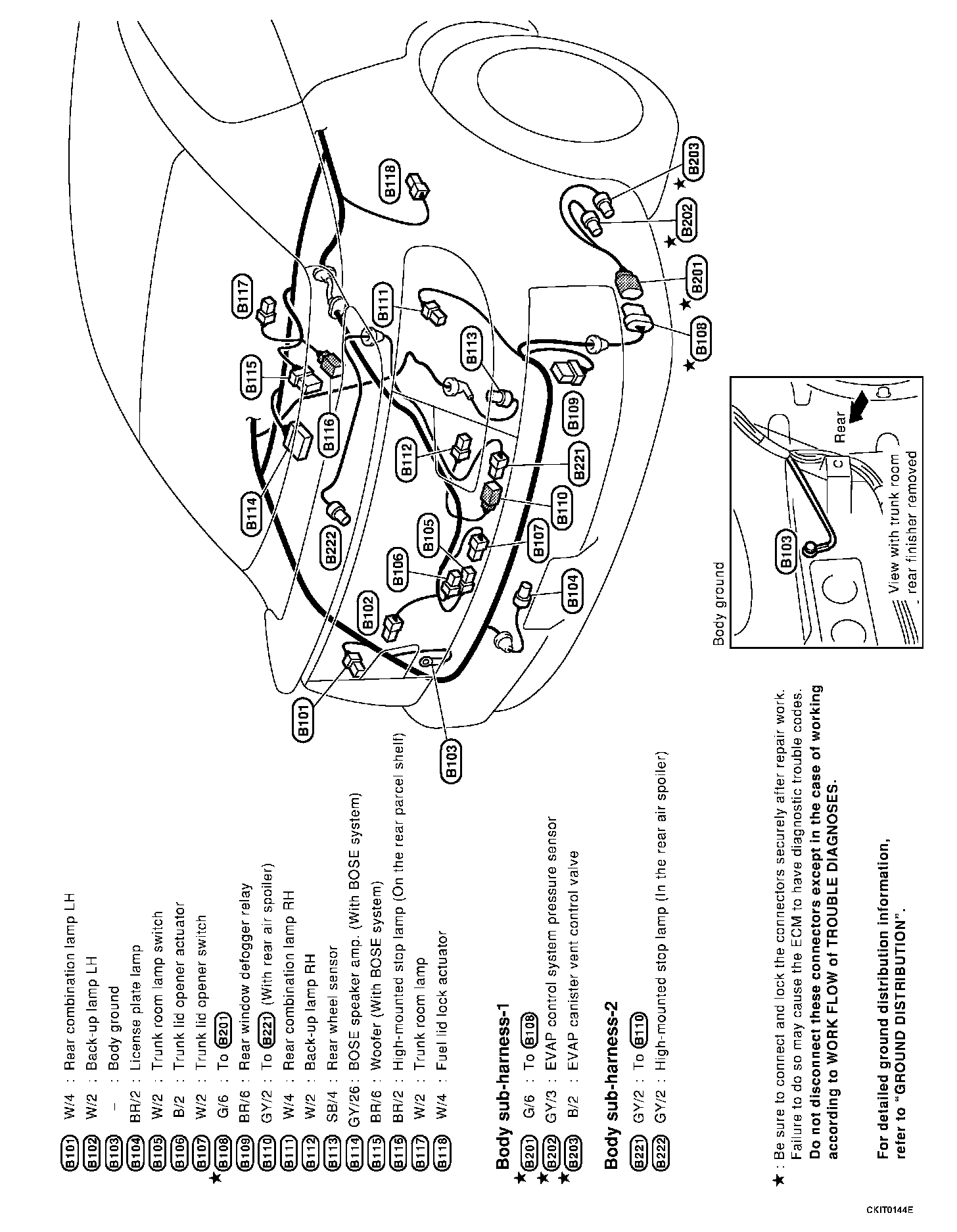

Trunk Room:
