Disassembly and Assembly




CLUSTER LID A
1. Remove screws with power tool, and remove mirror control switch.
2. Remove screws and disconnect lower side of pawls, and remove combination meter.

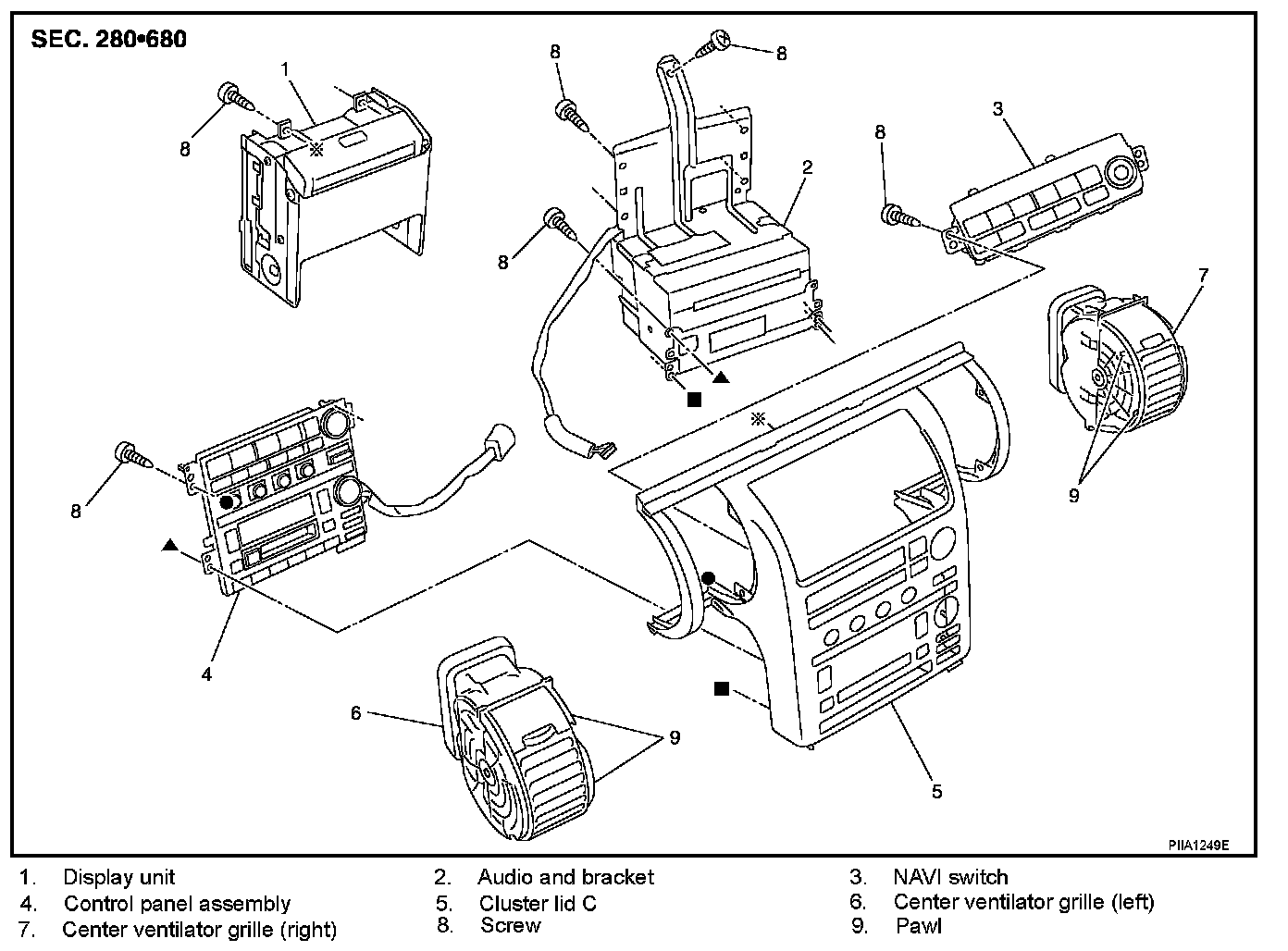

1. Disconnect pawl and remove center ventilator grille (right side only).
2. Remove display unit assembly and audio unit, NAVI switch and control panel assembly.




CENTER BOX ASSEMBLY
1. Remove screws and pawls, and remove side ventilator (right).
2. Remove screws and remove NAVI control unit.
3. Remove screws and remove pocket (without NAVI).
4. Remove screws and remove center box upper and lower lid.

CONSOLE FINISHER (A/T)
1. Remove screws of back side (front), and remove ashtray (front portion).
2. Remove screws of back side (lower), and remove cup holder.

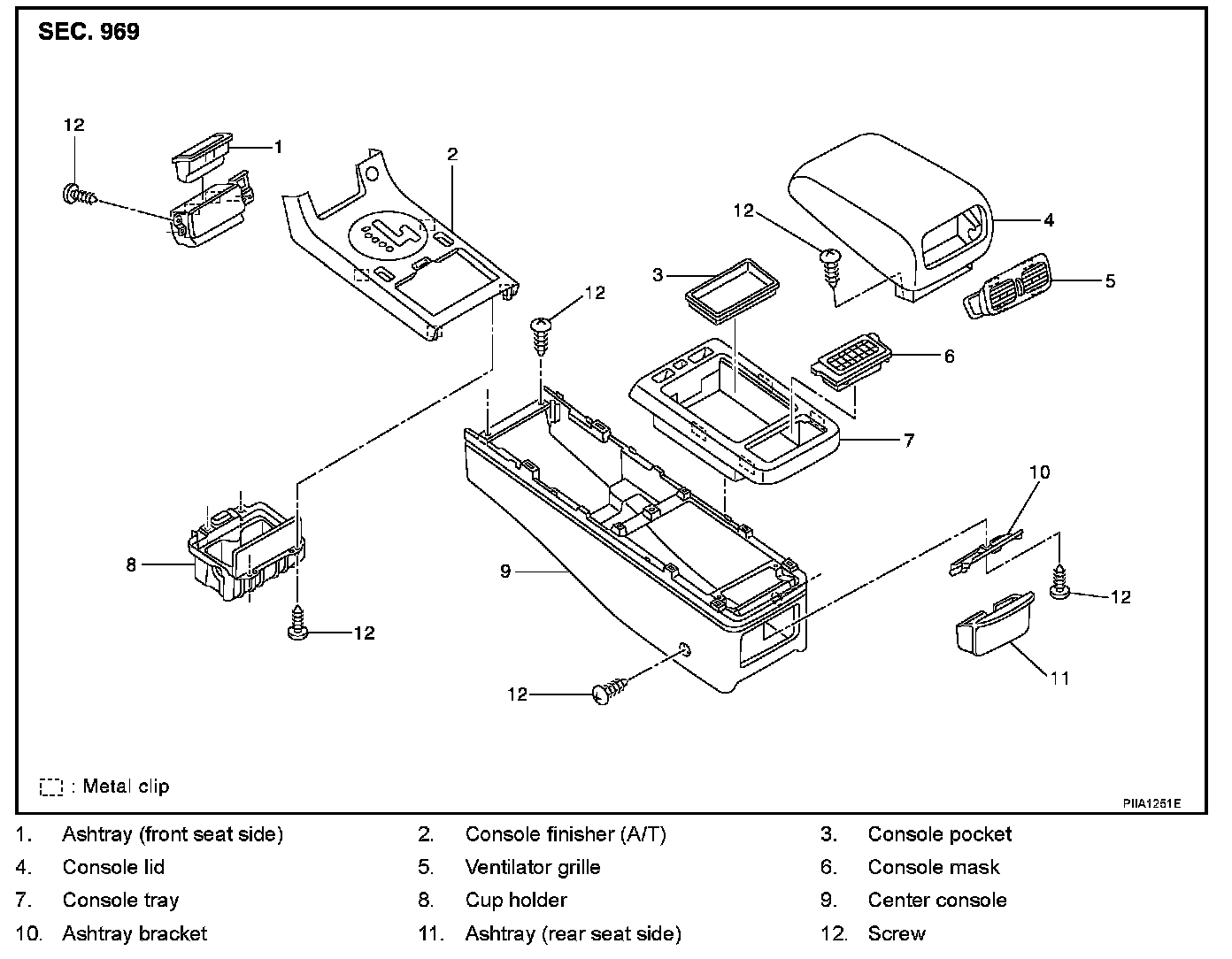

CENTER CONSOLE
1. Remove console mask.
2. Remove screws and remove console lid.
3. Disconnect metal clips and remove rear ventilator from console lid.
4. Remove ashtray.
5. Remove screws and remove ashtray bracket.
6. Disconnect metal clips (back side), and remove console tray.
