Removal and Installation

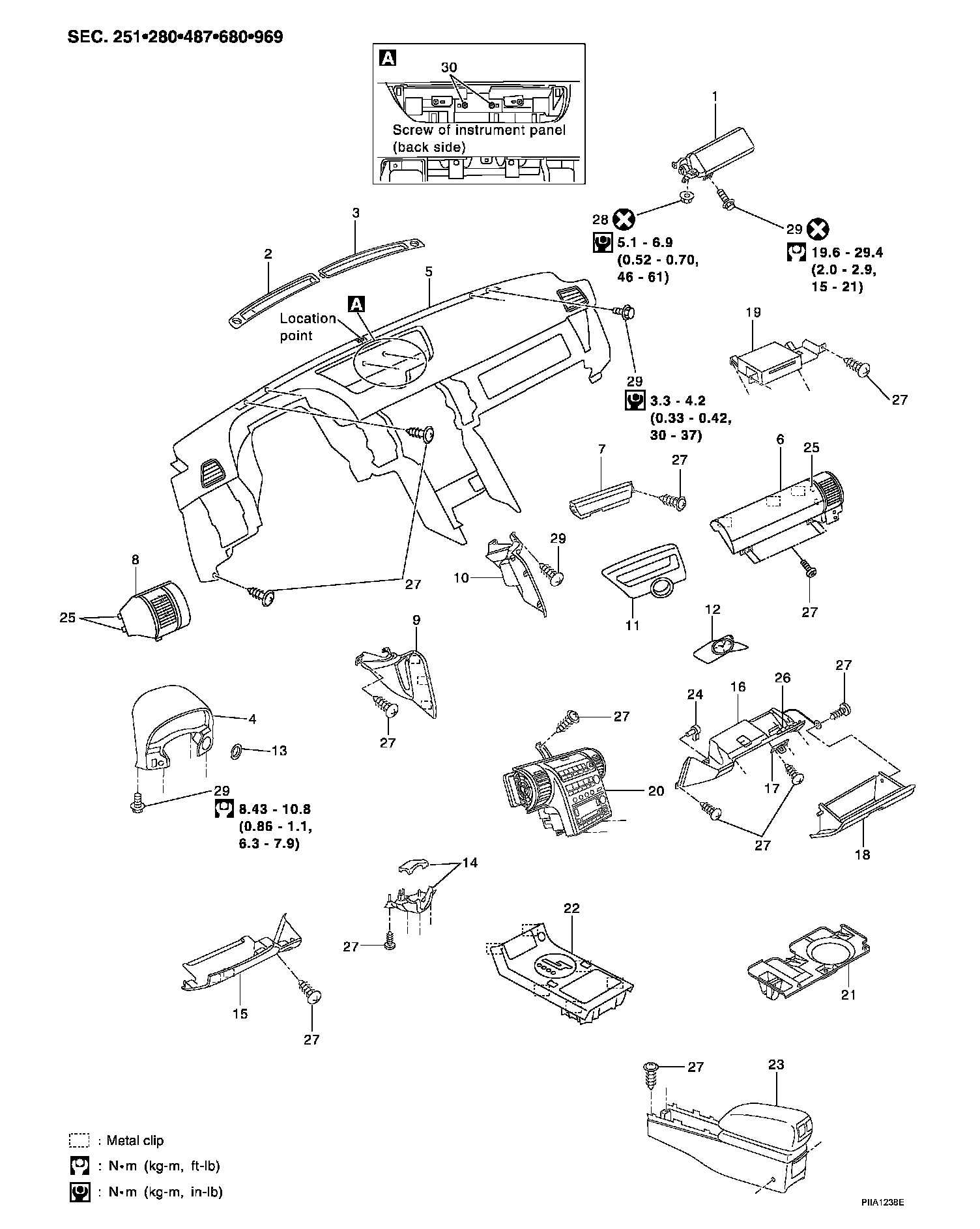

Component Part Drawing Part 1:
Removal and Installation
WORK STEP
Work Step:
When removing instrument panel and pad, combination meter, audio and display, navigator control unit and console assembly, take steps in the order shown by the numbers.
STEERING LOCK ESCUTCHEON
- Pull to outside of vehicle, and remove steering lock escutcheon.
STEERING COLUMN COVER
1. Remove screws.
2. Disconnect pawls, and remove upper and lower side of steering column cover.
INSTRUMENT LOWER DRIVER PANEL
1. Remove screws.
2. Pull back to your side, disconnect metal clips and remove instrument lower driver panel.
3. Disconnect in-vehicle sensor and each electrical parts connectors.

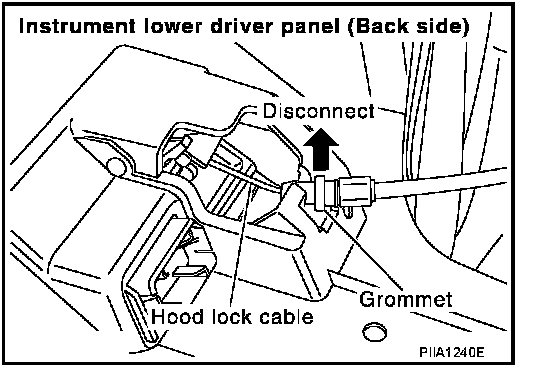

4. Remove grommet, and remove hood lock cable.
COMBINATION SWITCH
1. Remove bolts of cluster lid A.
2. Remove pawl on upper and lower of combination switch.
3. Disconnect harness connector of wiper washer switch.
4. Use shop clothes to protect cluster lid A and combination switch from damage. Remove combination switch through gap between cluster lid A and steering wheel.
CLUSTER LID A
1. After removing bolts, disconnect harness connectors of combination meter and mirror control switch, and remove cluster lid A.
2. After removing cluster lid A, remove combination meter and mirror control switch.
SIDE VENTILATOR GRILLE
- Pull back to your side, disconnect metal clips and remove side ventilator grille.

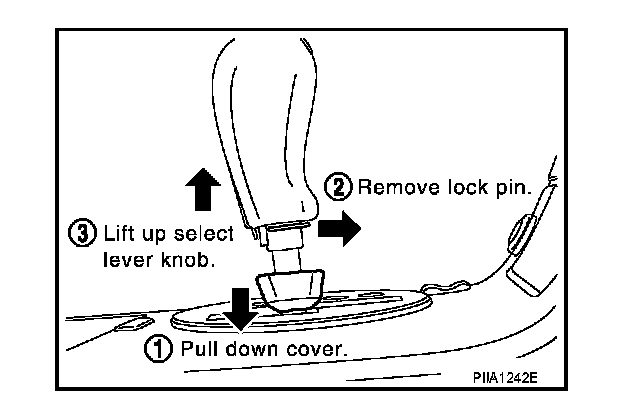

SELECTOR KNOB
1. Pull down selector knob cover.
2. Remove lock pin.
3. Lift up select lever knob and remove it.
CONSOLE FINISHER
1. Put selector lever in drive position.
2. Remove metal clips from rear of console finisher, then remove metal clips at front. Pull console finisher upward to disengage from console.

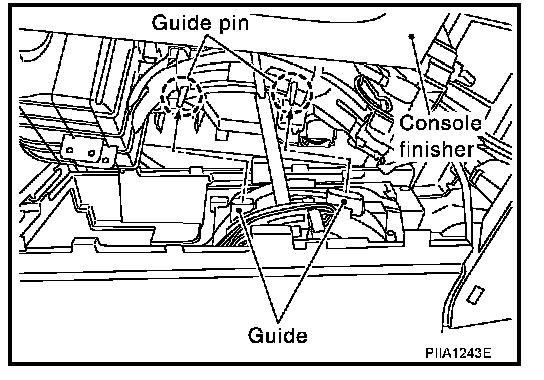

CAUTION: Guide pin inserted into A/T device guide can be easily broken. Be careful when removing it.
3. Disconnect harness connectors, and remove console finisher.
4. After removing, remove each parts from console finisher.
CLUSTER LID FINISHER
- Disconnect metal clips and remove cluster lid finisher.
NOTE: For easy removal, hold upper portion of lid, and pull lid upward to disengage metal clip. After that, pull it your side.
ASSISTANT LOWER COVER
- Pull downward, disconnect metal clips, and remove assistant lower cover.

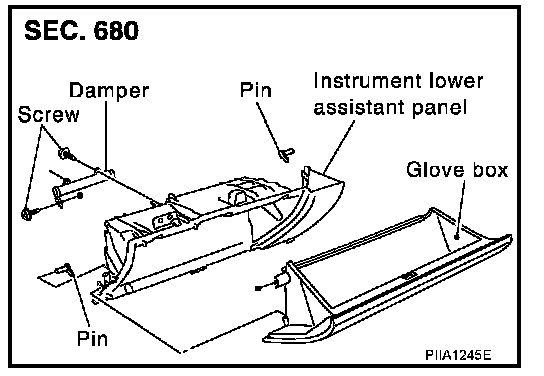

INSTRUMENT LOWER ASSISTANT PANEL AND GLOVE BOX
1. Remove screws with power tool.
2. Pull back to your side, and disconnect clips, and remove instrument lower
3. Remove screws of damper wire portion.
4. Disconnect glove box pins, and remove glove box.
5. Remove screws on back side of instrument lower assistant panel, and remove damper.
INSTRUMENT SIDE PANEL
1. Remove screws.
2. Pull to the side, disconnect metal clips, and remove instrument side panel.
CLUSTER LID C
1. Remove screws with power tool.
2. Disconnect harness connector of display unit and audio unit, and remove it.
CAUTION:
- When removing, place shop clothes onto surrounding parts to protect A/T device and center console from damage.
- Unit is heavy [approximately 7 kg (15 lb)]. Be careful not to pinch your fingers.
CENTER BOX ASSEMBLY
1. Remove screws.
2. Hold left side of center box assembly, pull to outside of vehicle and disconnect metal clips. Remove center box assembly.
3. After removing, remove side ventilator grille and lid.
NAVI CONTROL UNIT
- Remove screws, and disconnect harness connector, and remove navigator control unit.
DISPLAY AND AMPLIFIER ASSEMBLY
- Remove screws, and disconnect harness connector, and remove audio display and amplifier assembly.
PASSENGER AIR BAG MODULE
- Remove bolts and nuts, and remove passenger air bag module
Refer to Restraint Systems; Air Bag Service and Repair
CENTER CONSOLE
1. Remove screws.
2. After removing, disassemble each parts.

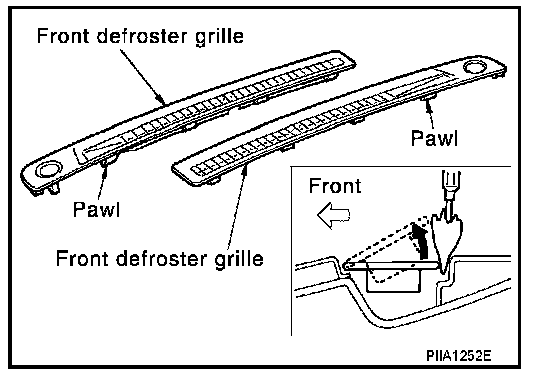

FRONT DEFROSTER GRILLE
- Disconnect pawls with screwdriver wrapped in cloth and remove defroster grille.
FRONT PILLAR GARNISH
- Pull to inside of vehicle, disconnect metal clips and remove front pillar garnish.
INSTRUMENT PANEL AND PAD

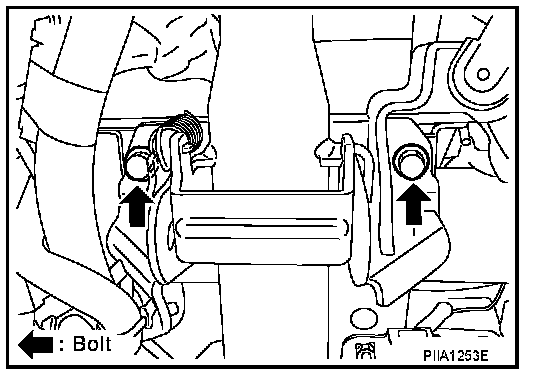

1. Remove bolts, and lower steering column.
2. Remove bolts and screws, and remove instrument panel and pad from passenger door opening portion.
Installation
To install, reverse the removal procedure sequence. Assemble the following three parts carefully.
CONSOLE FINISHER
1. Put selector lever to driving position.
2. Put indicator panel to front side.
3. Connect each harness connectors.
4. While pushing forward and holding A/T indicator panel, engage metal clip at front of console finisher. Then insert guide pin into A/T device guide.
CAUTION: Guide pin at back of console finisher can be easily broken. Be careful not to break it when working.

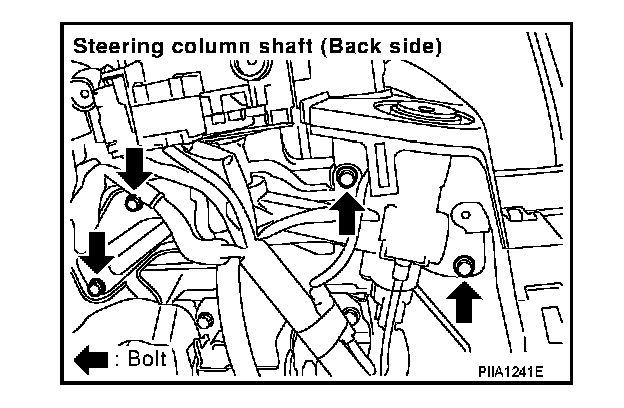

STEERING COLUMN SHAFT
- When securing steering column shaft with bolts, position it so that both left and right gaps between instrument panel and steering column shaft become identical.
INSTRUMENT LOWER DRIVER PANEL
- Inserting lower left clip is rather difficult. After installation ensure that clip is correctly inserted.
