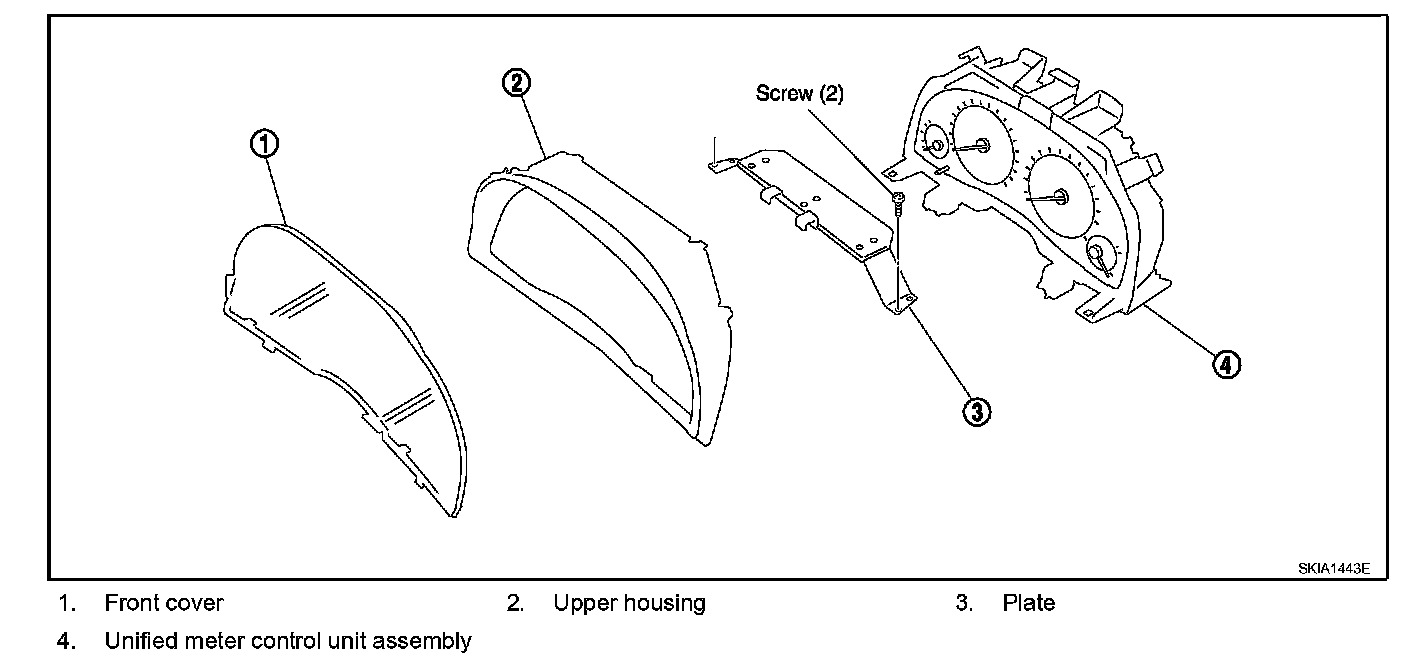

Disassembly and Assembly




1. Disengaged the tabs (8) to separate front cover.
2. Remove screw (2) and remove prate.
3. Disengaged the tabs (8) to separate upper housing.
4. Remove bulbs.
