Removal and Installation

Removal and Installation for Combination Meter
1. Remove column cover.
2. Remove combination switch.
3. Remove instrument lower cover.

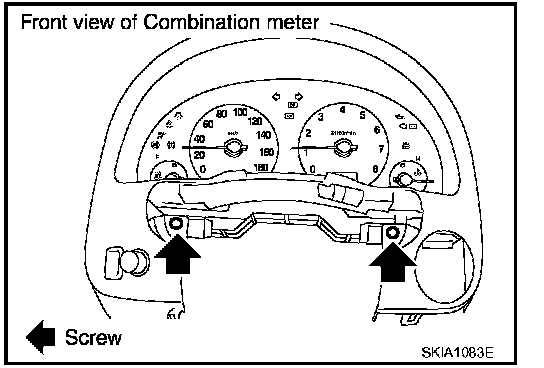

4. Remove the screw(4) and remove cluster lid A and combination meter assembly.




5. Disconnect connectors and remove combination meter.
6. Disassembly cluster lid A and combination meter.
