Electrical Components Inspection

FUEL LEVEL SENSOR UNIT CHECK
For removal refer to FL-5, "FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL PUMP ASSEMBLY".

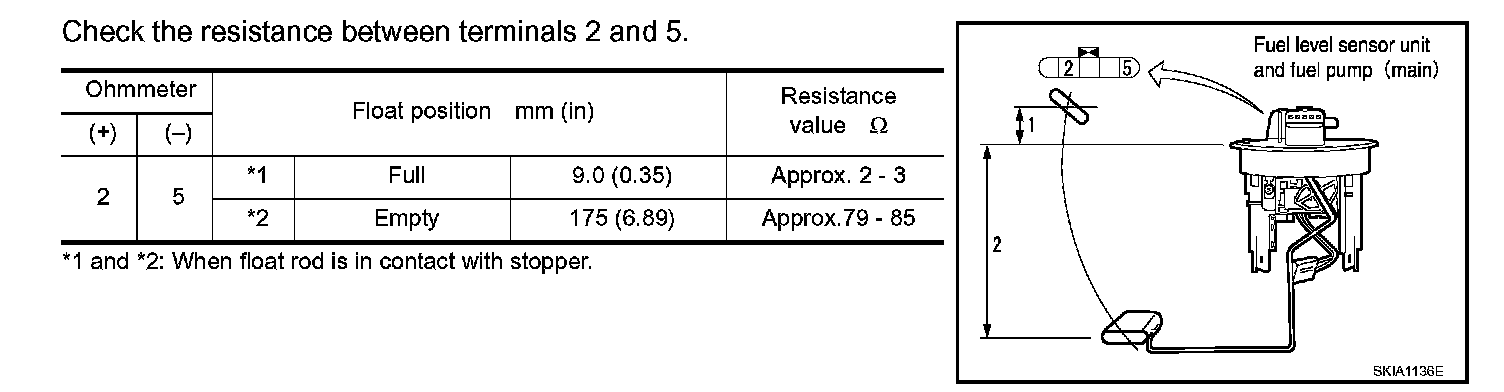

Fuel Level Sensor Unit And Fuel Pump (Main):

Fuel Level Sensor Unit And Fuel Pump (Main)

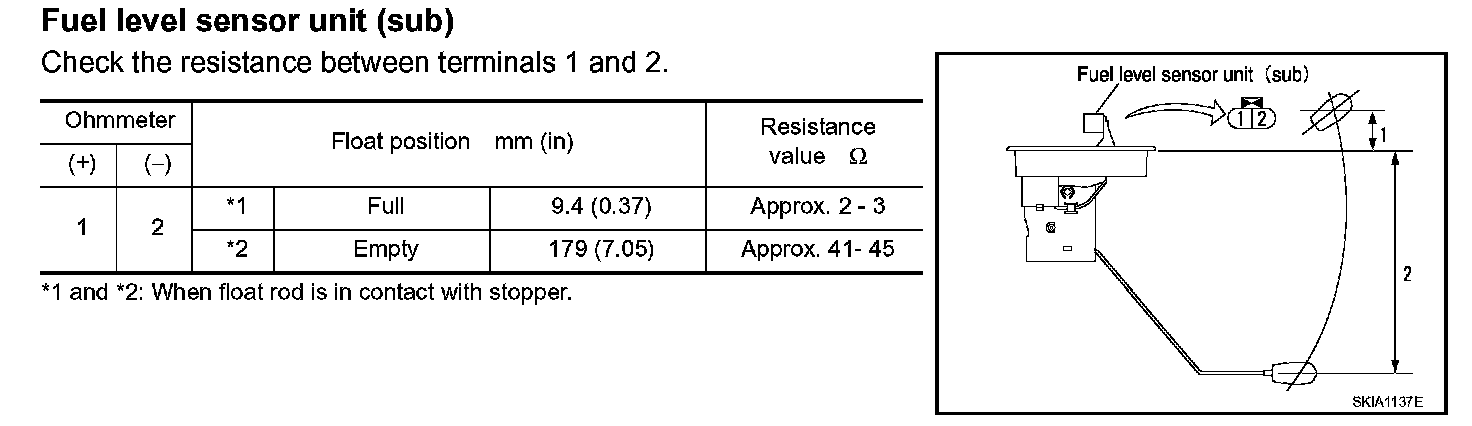

Fuel Level Sensor Unit (SUB):

Fuel Level Sensor Unit (SUB)
