Inspection/Fuel Level Sensor

Inspection/Fuel Level Sensor
The following symptoms do not indicate a malfunction.

FUEL-GAUGE
- Depending on vehicle position or driving circumstance, the fuel in the tank flows and the pointer may fluctuate.
- If the vehicle is fueled with the ignition switch ON, the pointer will move slowly.

LOW-FUEL-WARNING LAMP
Depending on vehicle position or driving circumstance, the fuel in the tank flows and the warning lamp ON timing may change.

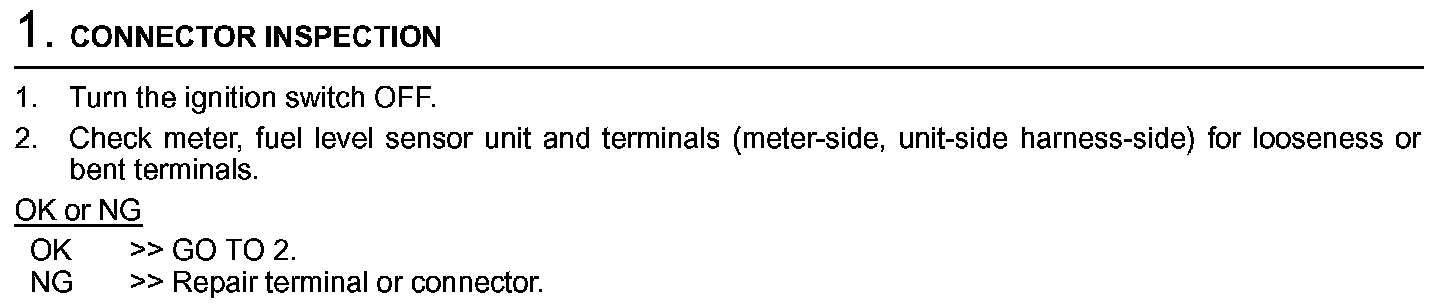

Inspection/Fuel Level Sensor (DI-16):

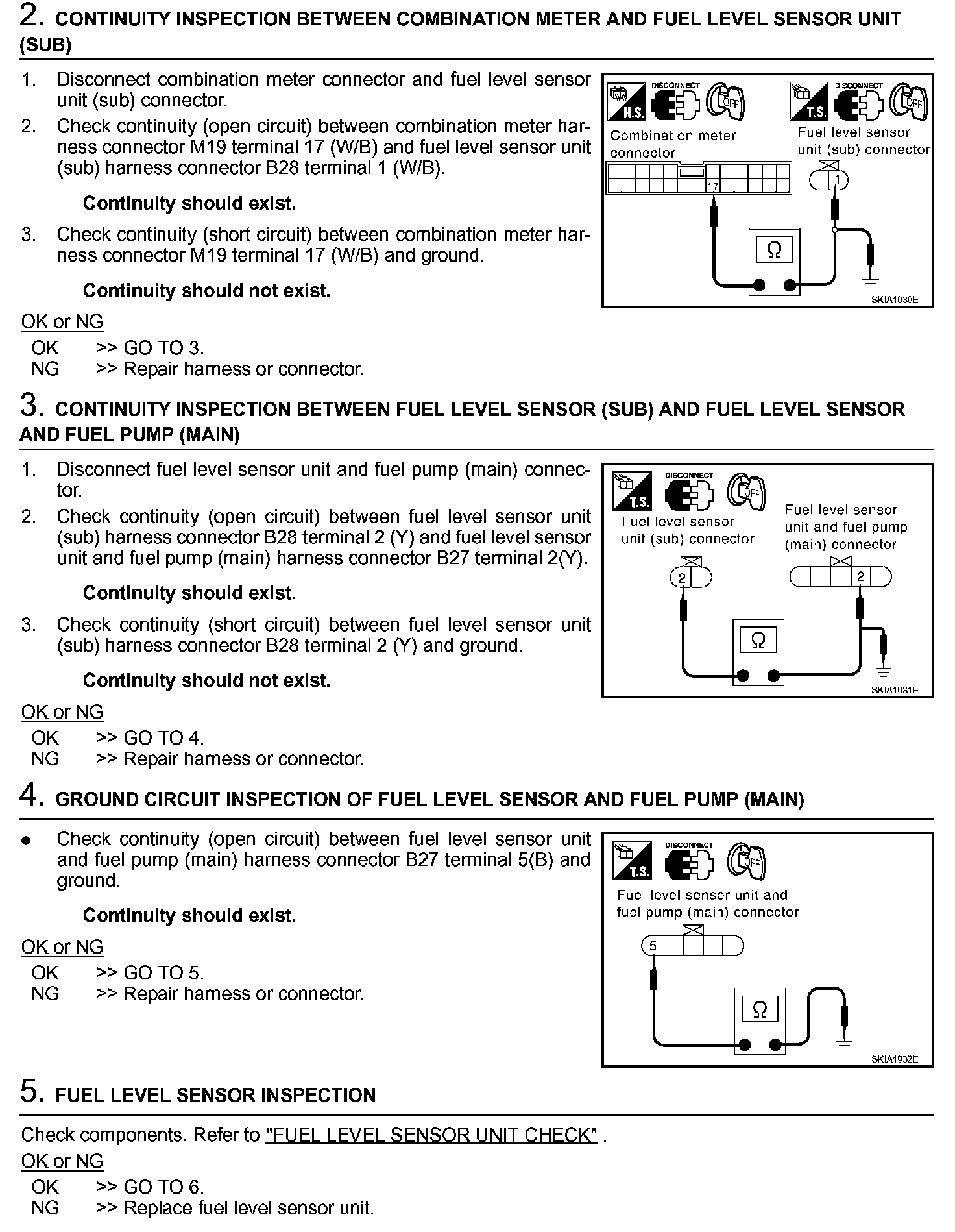

Inspection/Fuel Level Sensor (DI-17):

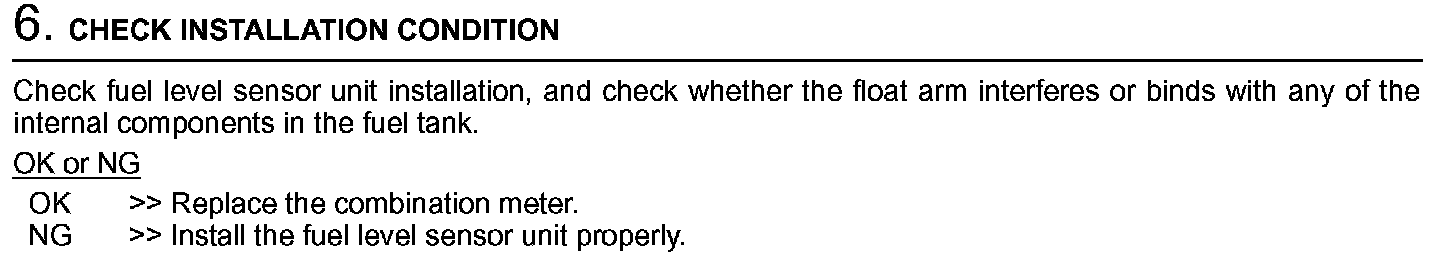

Inspection/Fuel Level Sensor (DI-18):
