Brake Light Switch: Testing and Inspection
BRAKE SWITCHSTOP LAMP SWITCH
1. Disconnect stop lamp switch harness connector.

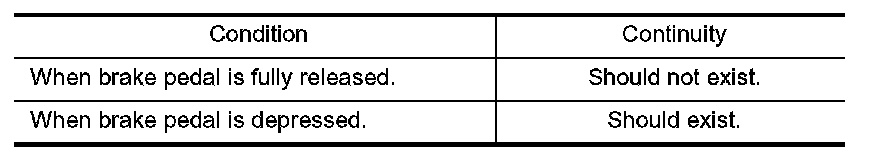

2. Check continuity between stop lamp switch terminals 1 and 2 under the given conditions.
3. If NG adjust stop lamp switch installation refer to "BRAKE PEDAL ASSY" and perform step 2 again.

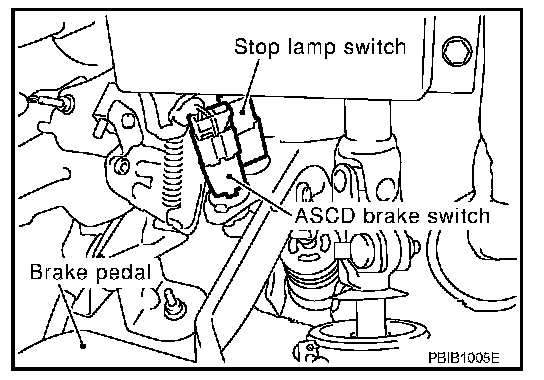

ASCD BRAKE SWITCH
STOP LAMP SWITCH
1. Turn ignition switch "OFF".
2. Disconnect stop lamp switch harness connector.
3. Check harness continuity between stop lamp switch terminals 1 and 2 under the given conditions.
If NG, adjust stop lamp switch installation, refer to "BRAKE PEDAL ASSY" and perform step 3 again.
