Center Mounted Brake Lamp: Service and Repair

Removal and Installation for High-mounted Stop Lamp




WITH REAR SPOILER
1. Remove screws and remove high-mounted stop lamp from rear spoiler.
2. Disconnect high-mounted stop lamp connector.

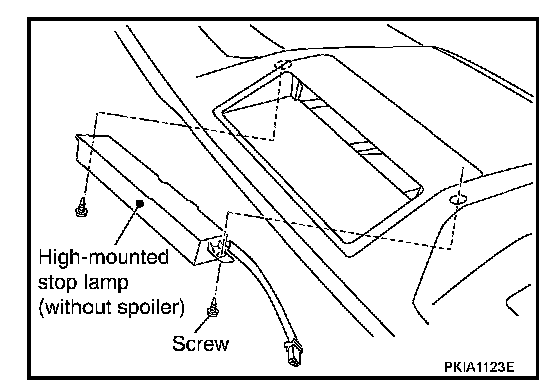

WITHOUT SPOILER
1. Remove rear parcel shelf finisher.
2. Remove screws and remove high-mounted stop lamp from rear parcel shelf finisher.
3. Disconnect high-mounted stop lamp connector.
