Electrical Diagrams

LT-F/FOG-01 (For USA):

LT-F/FOG-02 (For USA):

LT-F/FOG-03 (For CANADA):

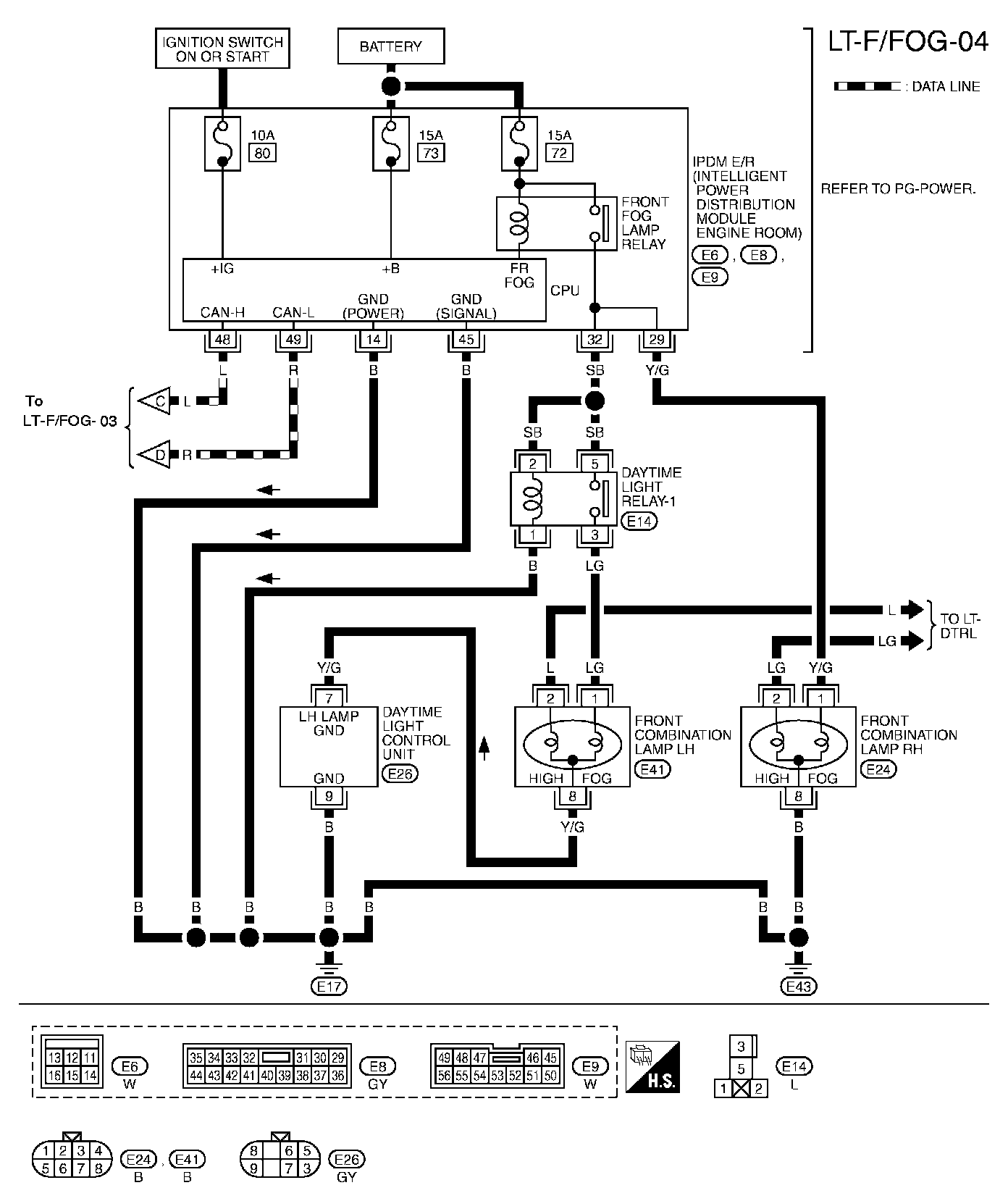

LT-F/FOG-04 (For CANADA):

Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
