Removal and Installation
For USA/CANADAREMOVAL
1. Remove front grille.
2. Remove front undercover and fender protector.
3. Remove mounting clip on top of front bumper and screws on side of front bumper.
4. Pull side of the front bumper toward the vehicle front and disengage it from clips on the body.
5. Remove headlamp mounting bolts.
6. Pull headlamp toward vehicle front, disconnect connector, and remove headlamp.
CAUTION: When removing headlamps, put a shop cloth or something similar between headlamps and bumper to protect bumper.
INSTALLATION
Install in the reverse order of removal. Be careful of the following:
Headlamp mounting bolt:
Tightening Torque: 4.4 - 6.5 N.m (0.45 - 0.66 kg-m, 39 - 57 in-lb)
Servicing to Replace Headlamps When Damaged

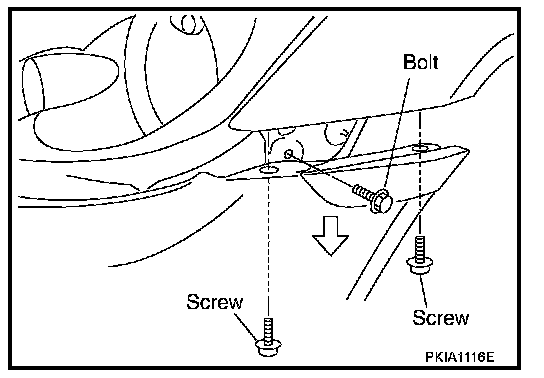

If only installation part as shown in the figure is damaged, and headlamp housing itself is not damaged, repair can be completed easily by installing correction brackets.
REMOVAL AND INSTALLATION
1. Remove headlamps. Refer to "Removal and Installation".
2. Cut damaged section of installation part, then shape with sand paper.
3. Attach each correction bracket to headlamp housing boss with 2 screws.
RH headlamp Outer side 26040 AL510
Inner side 26040 AL500
LH headlamp Outer side 26040 AL510
Inner side 26090 AL500
