Horn: Service and Repair

Removal and Installation

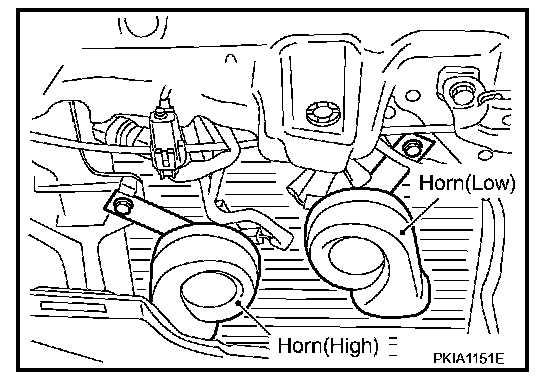

REMOVAL
1. Remove front grille.
2. Disconnect all horn connectors.
3. Remove horn bolt and remove horn from vehicle.

INSTALLATION
Tighten horn bolt to specified torque.

Horn bolt: 15.6 - 18.6 Nm (1.6 - 1.8 kg-m, 12 - 13 ft-lb)
