Bulb Replacement

REAR COMBINATION LAMP

Bulb Replacement

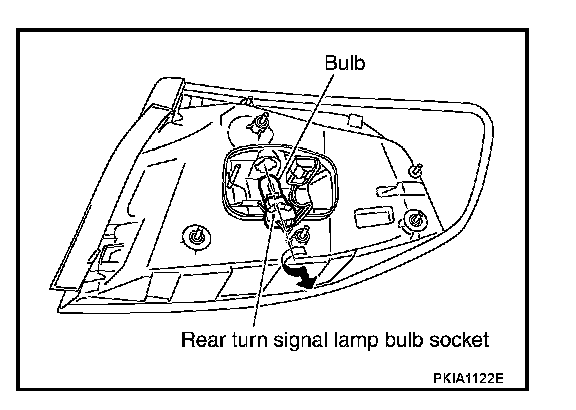

REAR FENDER SIDE (REAR TURN SIGNAL LAMP BULB)
1. Open trunk and remove trunk side finisher.
2. Turn bulb socket counterclockwise and unlock it.
3. Remove bulb.

TRUNK LID SIDE (BACK-UP LAMP)
1. Remove trunk lid finisher.
2. Turn bulb socket counterclockwise and unlock it.




3. Remove bulb.

Stop/tail lamp (rear fender side) : LED (Replace together with rear combination lamp assembly.)
Rear turn signal lamp (rear fender side) : 12 V - 21 W
Back-up lamp (trunk lid side) : 12 V - 18 W
Rear side marker lamp (rear fender side) : LED (Replace together with rear combination lamp assembly.)
