Removal and Installation

REAR COMBINATION LAMP

REMOVAL




Rear Fender Side
1. Open trunk and remove trunk side finisher.
2. Disconnect rear combination lamp connector.
3. Remove rear combination lamp installation nuts.
4. Pull the rear combination lamp toward rear of the vehicle and remove from the vehicle.
5. Remove seal packing from the vehicle.

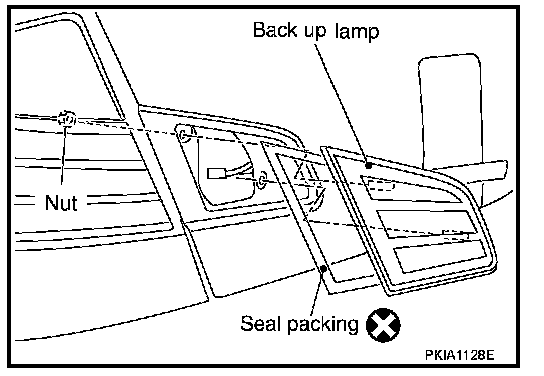

Trunk Lid Side
1. Remove trunk lid finisher.
2. Disconnect rear combination lamp connector.
3. Remove rear combination lamp installation nuts.
4. Remove rear combination lamp from trunk lid.
5. Remove seal packing from trunk lid.

INSTALLATION
Install in the reverse order of removal. Be careful of the following:

Install a new seal packing to the rear combination lamp.

CAUTION: Seal packing cannot be reused.

Rear combination lamp mounting nut:
Tightening Torque: 2.5 - 3.8 N.m (0.26 - 0.38 kg-m, 23 - 33 in-lb)
