Component Tests and General Diagnostics

Diagnostic Procedure Step 1 - 2:

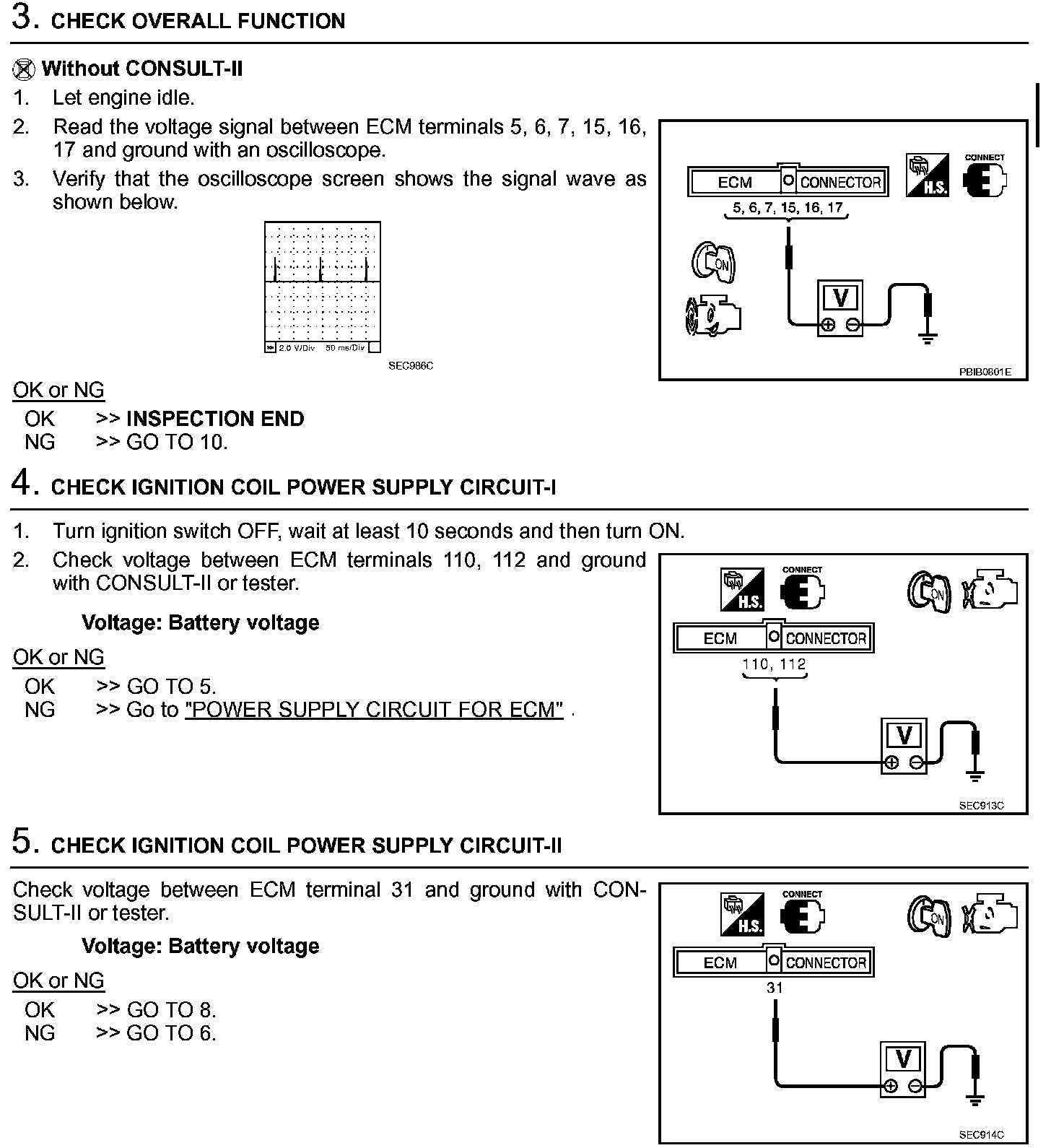

Diagnostic Procedure Step 3 - 5:

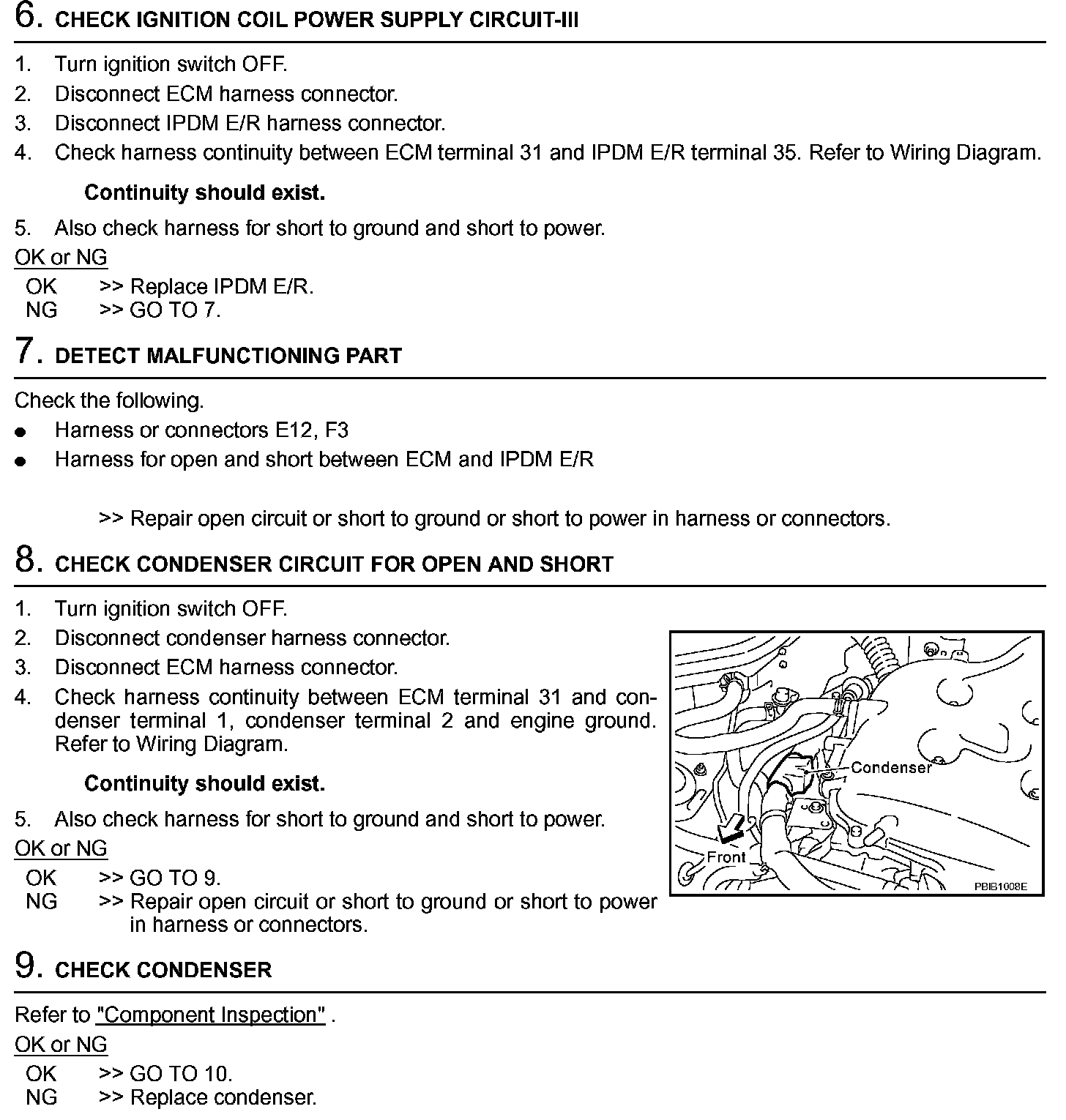

Diagnostic Procedure Step 6 - 9:

Diagnostic Procedure Step 10 - 12:

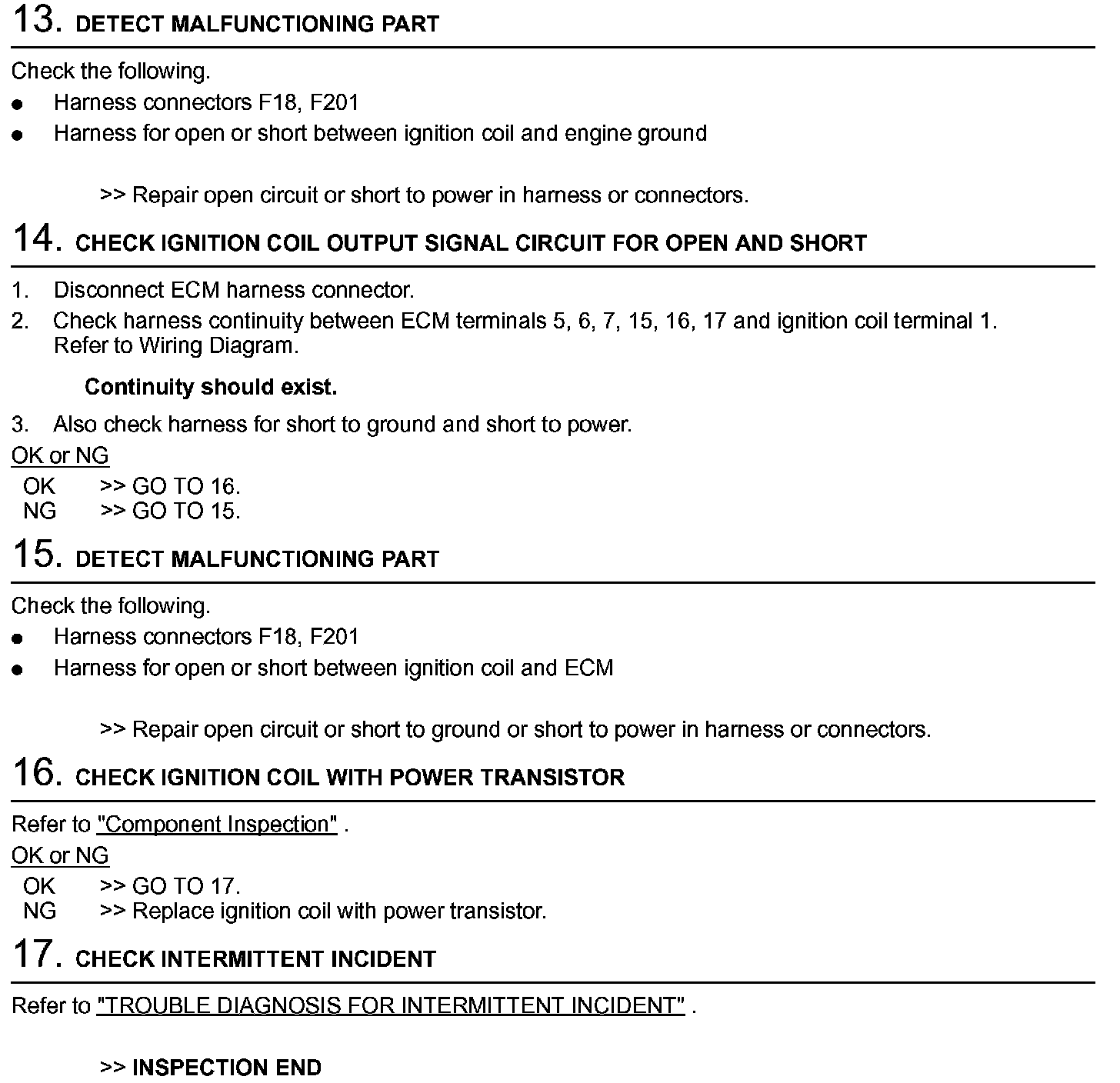

Diagnostic Procedure Step 13 - 17:
