Ignition Timing: Testing and Inspection

Any of following two methods may be used.





Method A

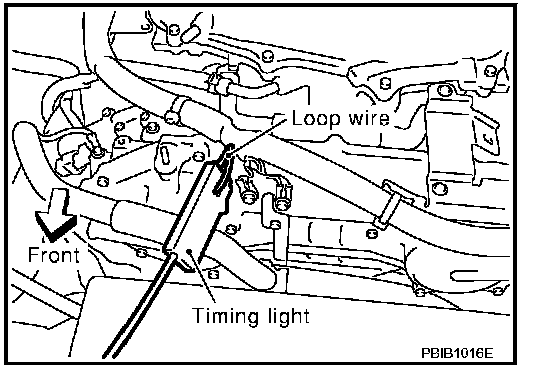

1. Attach timing light to loop wire as shown.
2. Check ignition timing.





Method B

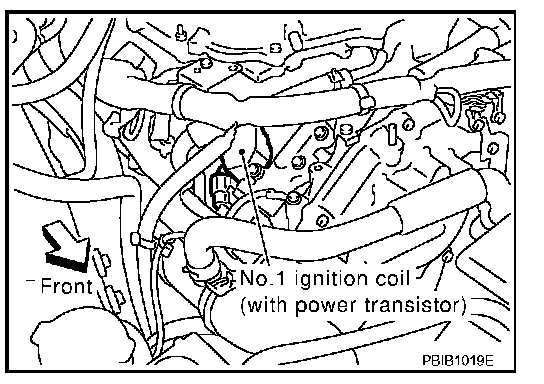

1. Remove No.1 ignition coil.

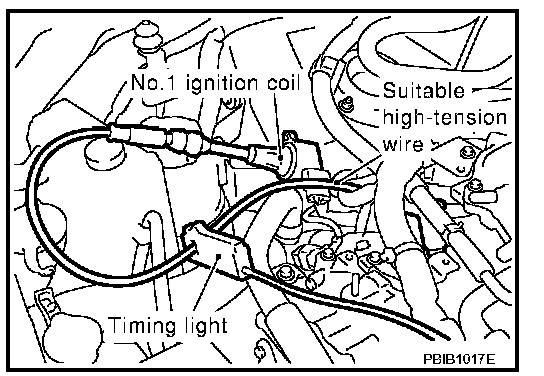

2. Connect No.1 ignition coil and No.1 spark plug with suitable high-tension wire as shown, and attach timing light clamp to this wire.







3. Check ignition timing.
