Component Tests and General Diagnostics

REAR PROPELLER SHAFT

On-Vehicle Service
PROPELLER SHAFT VIBRATION





If vibration is present at high speed, check mounting between propeller shaft and companion flange.

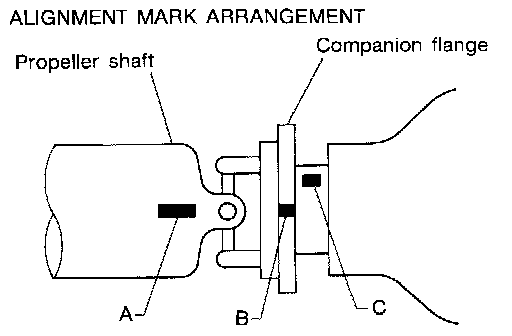

Make sure alignment marks A and B are located as close to each other as possible.
If not, change mounting as indicated in "Installation".

APPEARANCE CHECKING
^ Inspect propeller shaft tube surface for dents or cracks. If damaged, replace propeller shaft assembly.
^ If center bearing is noisy or damaged, replace it.
