Reading and Clearing Diagnostic Trouble Codes

CONSULT-II Function

CONSULT-II BASIC OPERATION PROCEDURE




1. With ignition switch OFF connect CONSULT-II to data link connector on vehicle and turn ON ignition switch.
2. Touch "START".




3. Touch "BCM" on "SELECT SYSTEM" screen.

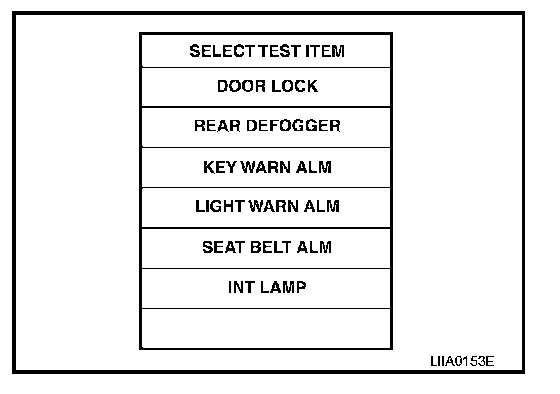

4. Select item to be diagnosed on "SELECT TEST ITEM" screen.
