Reading and Clearing Diagnostic Trouble Codes

CONSULT-II Inspection Procedure

"RETAINED PWR"
1. Turn ignition switch "ON".




2. Connect "CONSULT-II" to the data link connector.
3. Turn ignition switch "ON".




4. Touch "START".




5. Touch "BCM".

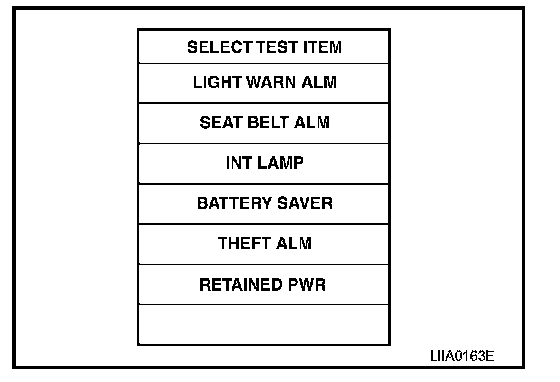

6. Touch "RETAINED PWR".




7. Select diagnosis mode. "ACTIVE TEST" and "WORK SUPPORT" are available.
