Engine Control System

Part 1:

Part 2:

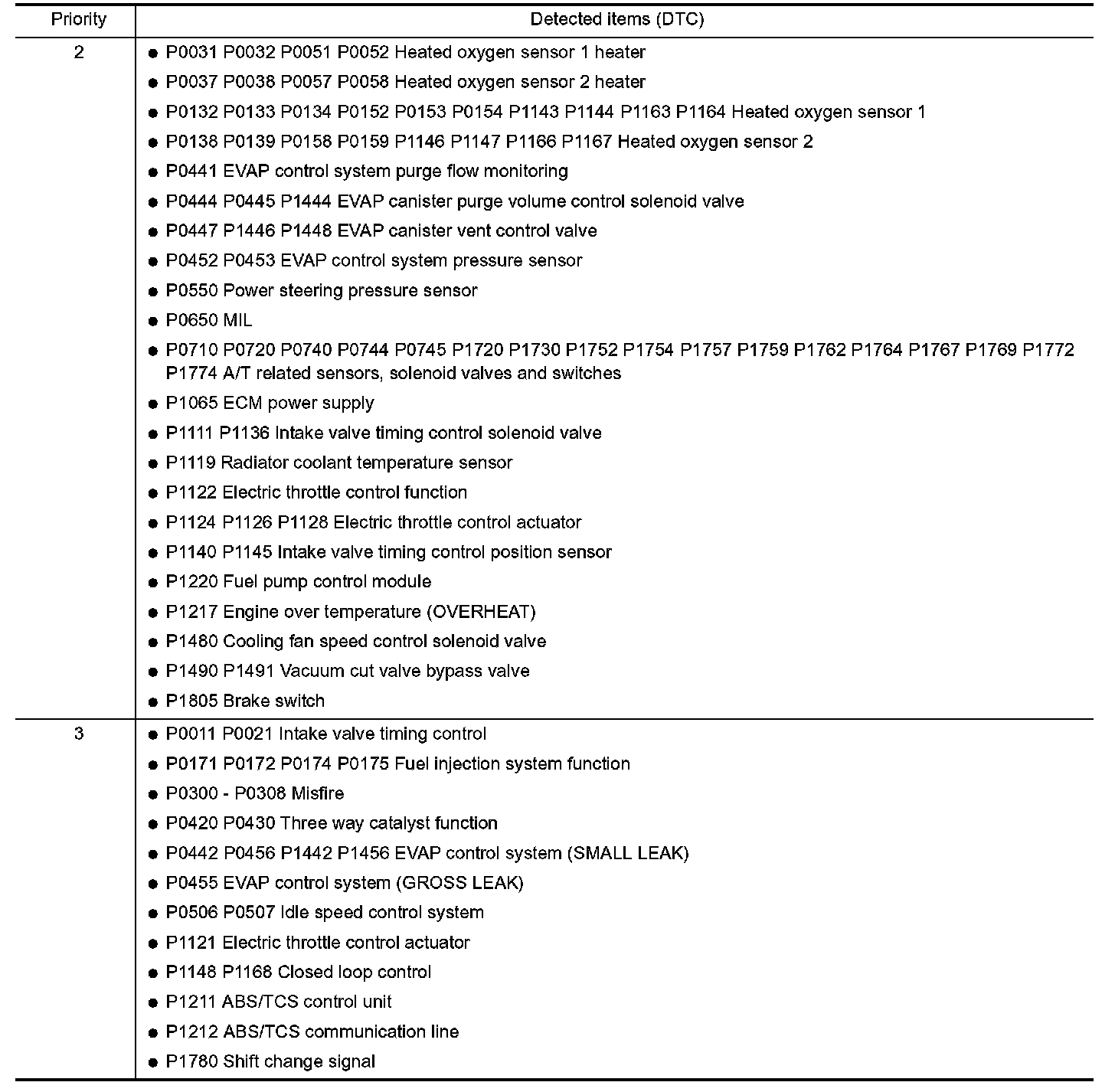

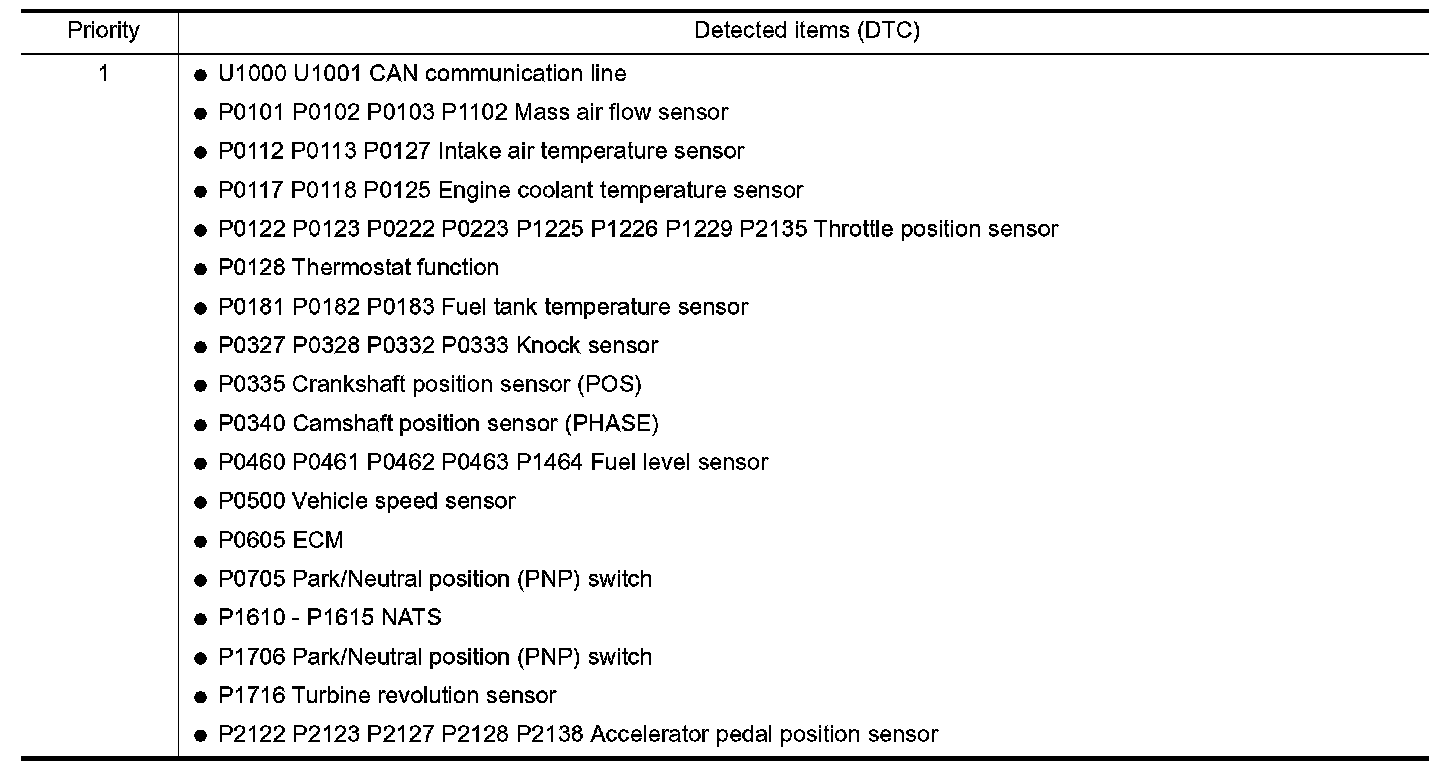

DTC Inspection Priority Chart
If some DTCs are displayed at the same time, perform inspections one by one based on the priority chart.

NOTE: If DTC U1000 and/or U1001 is displayed with other DTC, first perform the trouble diagnosis for DTC U1000, U1001. Refer to "INDEX FOR DTC".
