Antitheft and Alarm Systems: Service and Repair

Removal and Installation NATS Antenna Amp.

REMOVAL
1. Remove the Instrument lower driver panel.
2. Remove the steering lock escutcheon.
3. Remove the Instrument panel bracket.

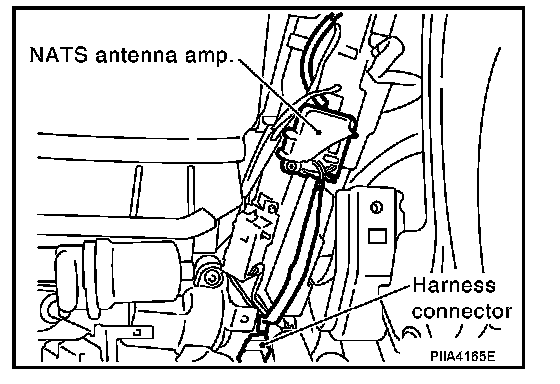

4. Remove the mounting screw, harness connector and remove NATS antenna amp.

INSTALLATION
Install in the reverse order of removal.
