Radio, Stereo, and Compact Disc: Service and Repair

Removal and Installation of Audio Unit

REMOVAL




1. Remove console upper finisher. Refer to "WORK STEPS".

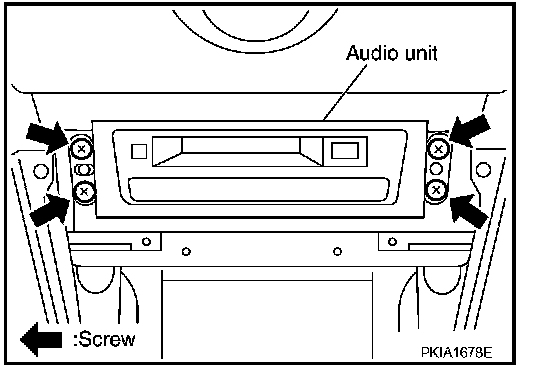

2. Remove screws (4), and remove audio unit with power tool.

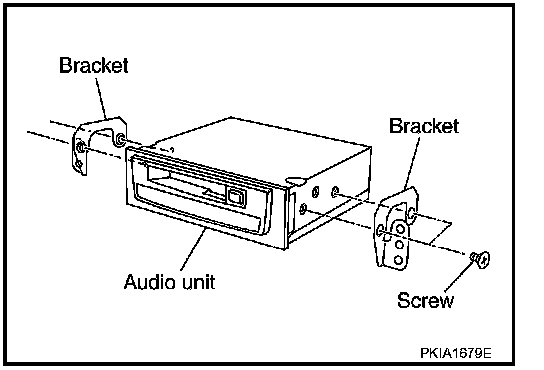

3. Remove screws (4), and remove bracket.

INSTALLATION
Install in the reverse order of removal.
