Terminals and Reference Value For CD Auto Changer

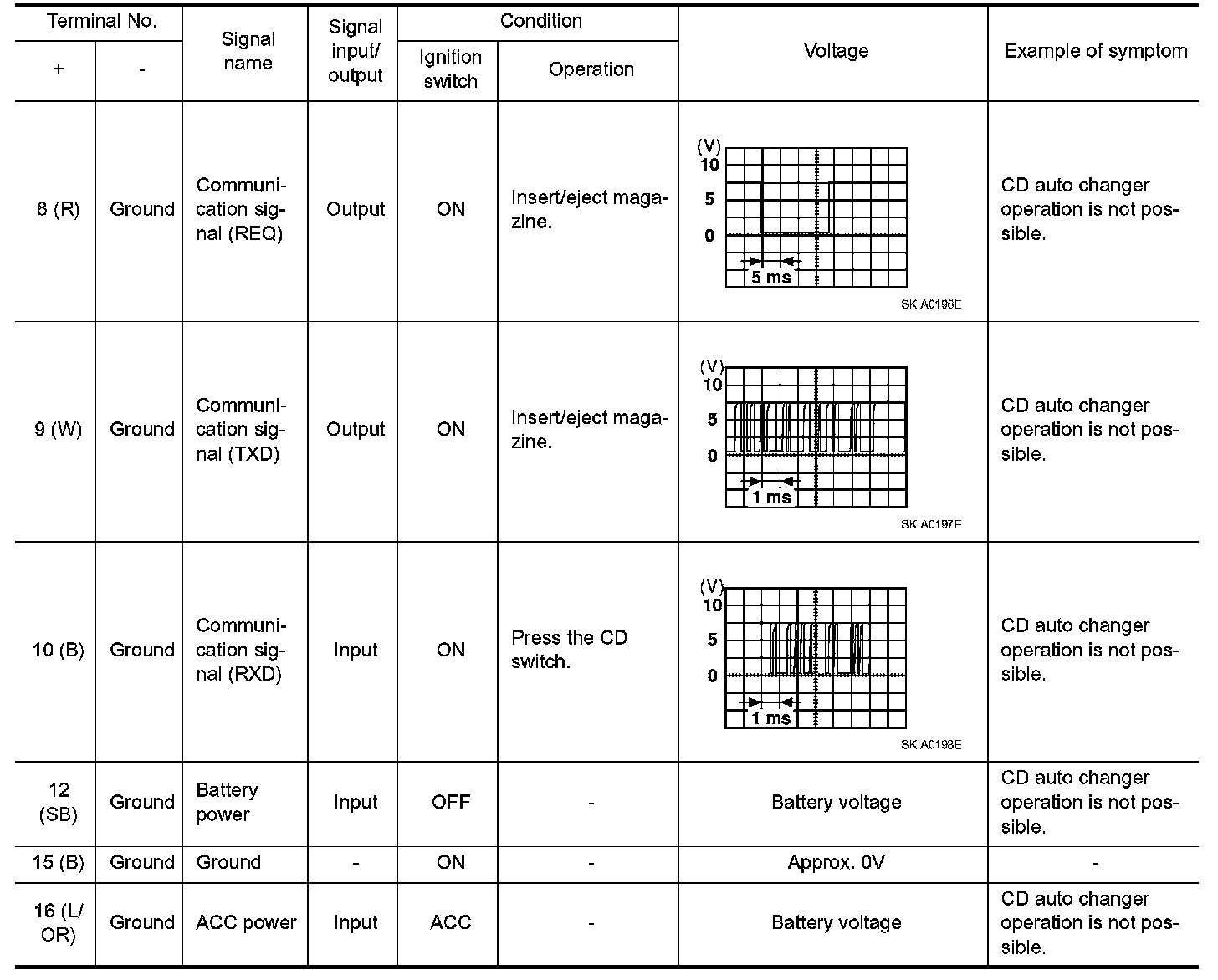

Terminals And Reference Value For CD Auto Changer Part 1:

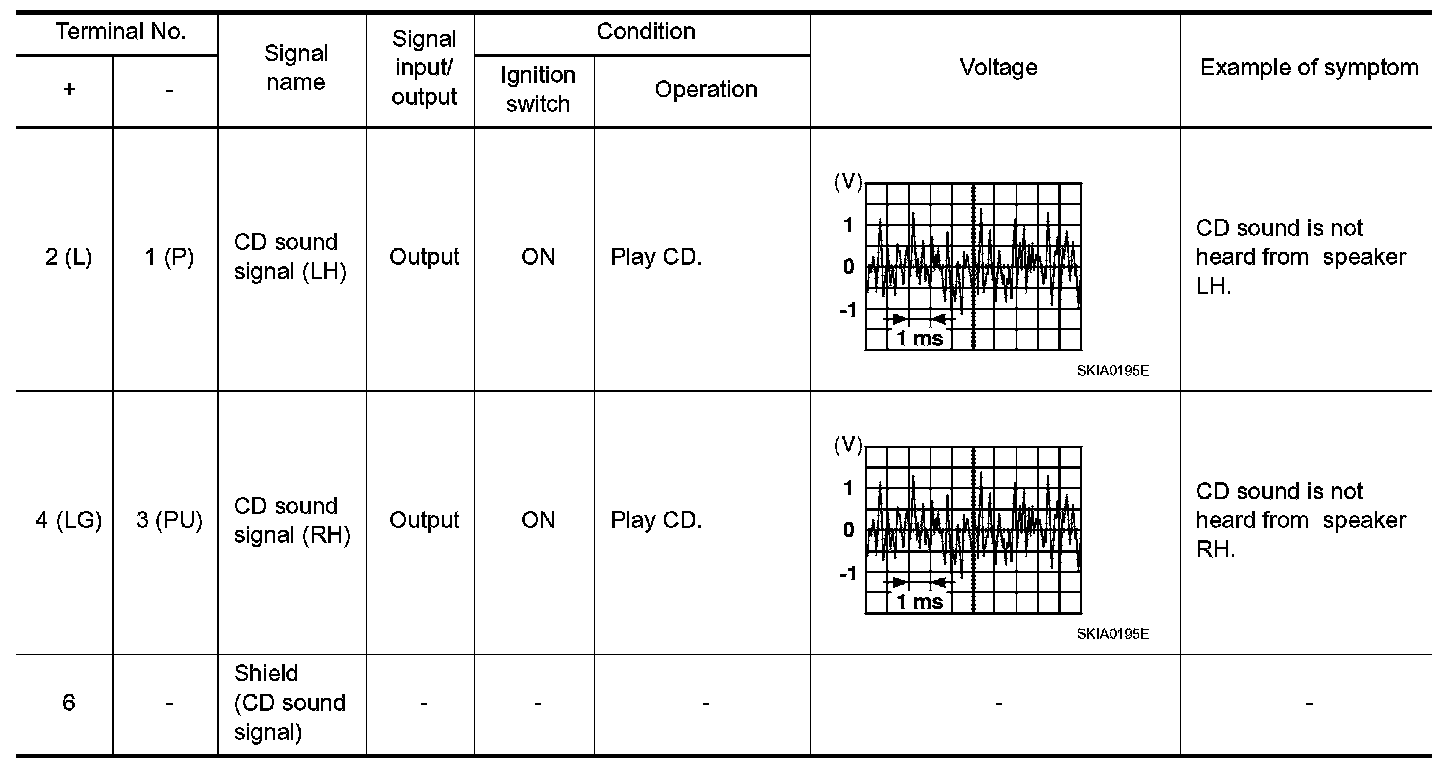

Terminals And Reference Value For CD Auto Changer Part 2:
