Rear Seat

Removal And Installation:

Arm Rest:

ARMREST ASSEMBLY


REMOVAL

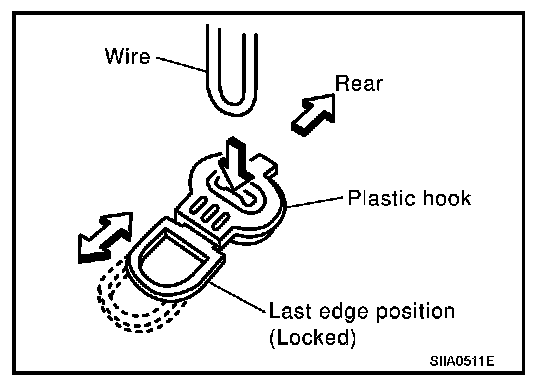

1. Pull the lock at the front bottom of the seat cushion forward, and pull the seat cushion upward to release the wire from the plastic hook, then pull the seat cushion forward to remove.
2. Partially remove the seatback board to disconnect and remove the nuts
3. Remove the LH and RH screws on the seatback.
4. Slide the seatback upward and remove the seatback.
5. After removing, remove the hog ring to separate the trim and pad.

INSTALLATION
- Install in the reverse order of removal.
