Brake Pedal Assy: Service and Repair

Removal and Installation





COMPONENT PARTS DRAWING

REMOVAL





1. Remove the instrument lower driver panel.
2. Remove the stop lamp switch and brake switch (or ASCD cancel switch) from the pedal assembly.

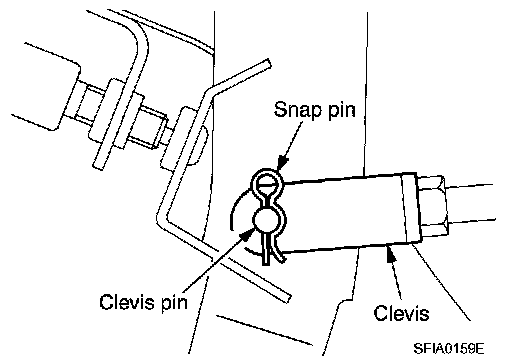

3. Remove the snap pin and clevis pin from the brake booster clevis.
4. Remove the mounting nuts and bolts from the bracket, and remove the pedal assembly from the vehicle.

INSPECTION AFTER REMOVAL





^ Check the brake pedal for bend, damage, and cracks on the welded parts. Replace the applicable part if a malfunction is detected.

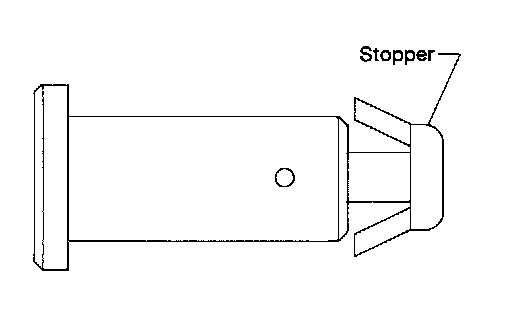

^ Check the clevis pin and resin stopper for damage and deformation. If a malfunction is detected, replace the clevis pin.

INSTALLATION
Paying attention to the following items, install in the reverse order of removal.
^ After installing the brake pedal assembly to the vehicle, adjust the brake pedal.
