Front

On-board Inspection

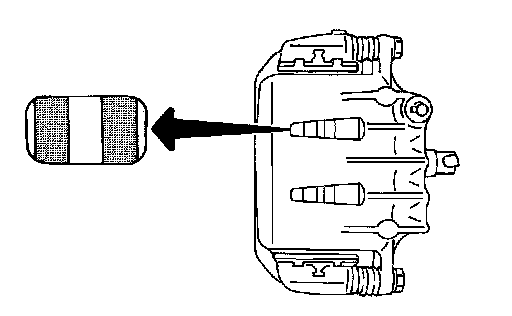

PAD WEAR INSPECTION





^ Remove the wheel with the vehicle lifted to check the pad thickness from the check hole on the cylinder body. If necessary, use a scale to check.
Standard thickness: 10.0 mm (0.394 inch)
Repair limit thickness: 2.0 mm (0.079 inch)
