Fuse Block - Junction Box (J/B)
Fuse Block - Junction Box (J/B)

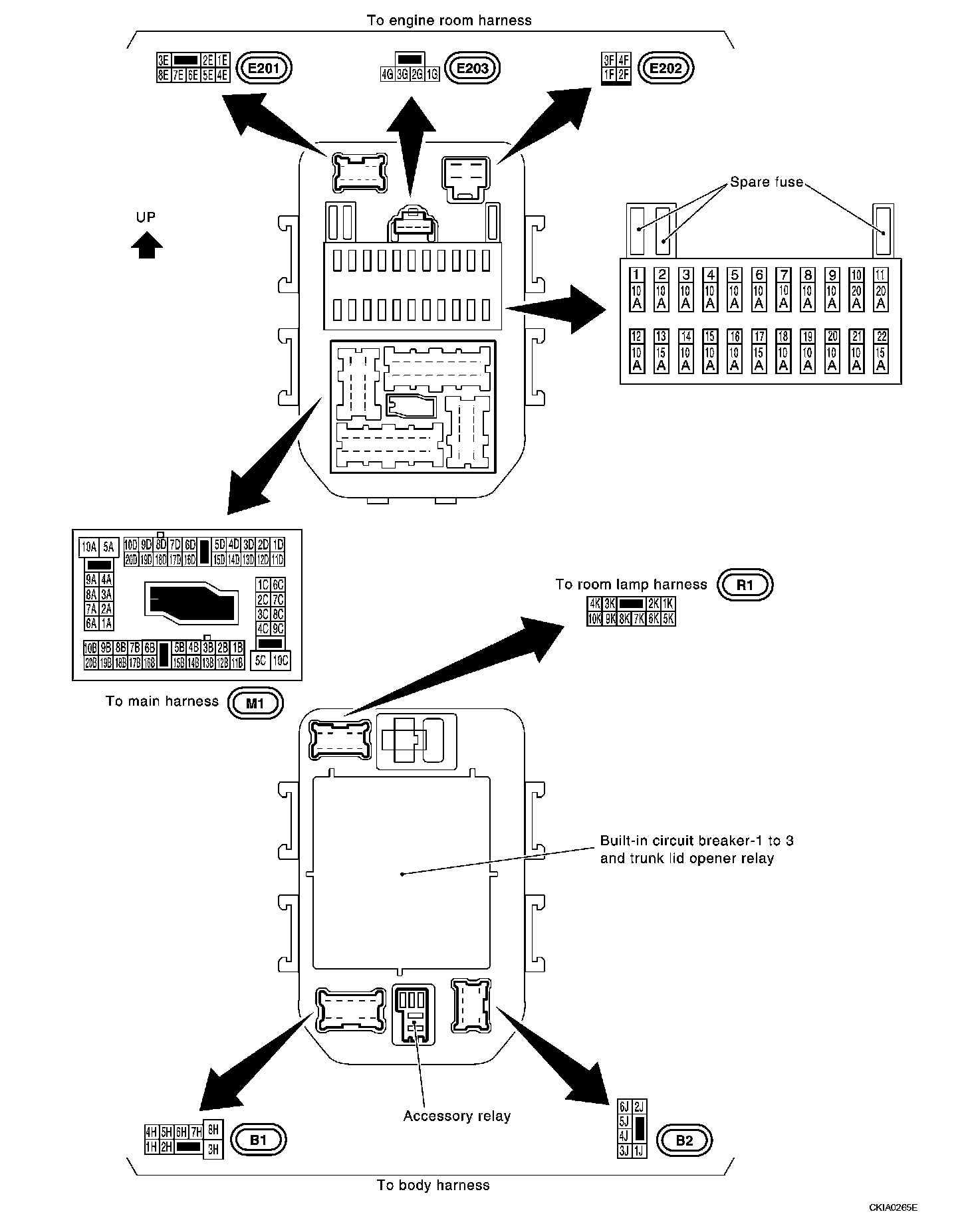

Fuse Block - Junction Box (J/B) No.1 Terminal Arrangement:
Fuse Block - Junction Box (J/B) No.2 Terminal Arrangement:
