Engine Compartment

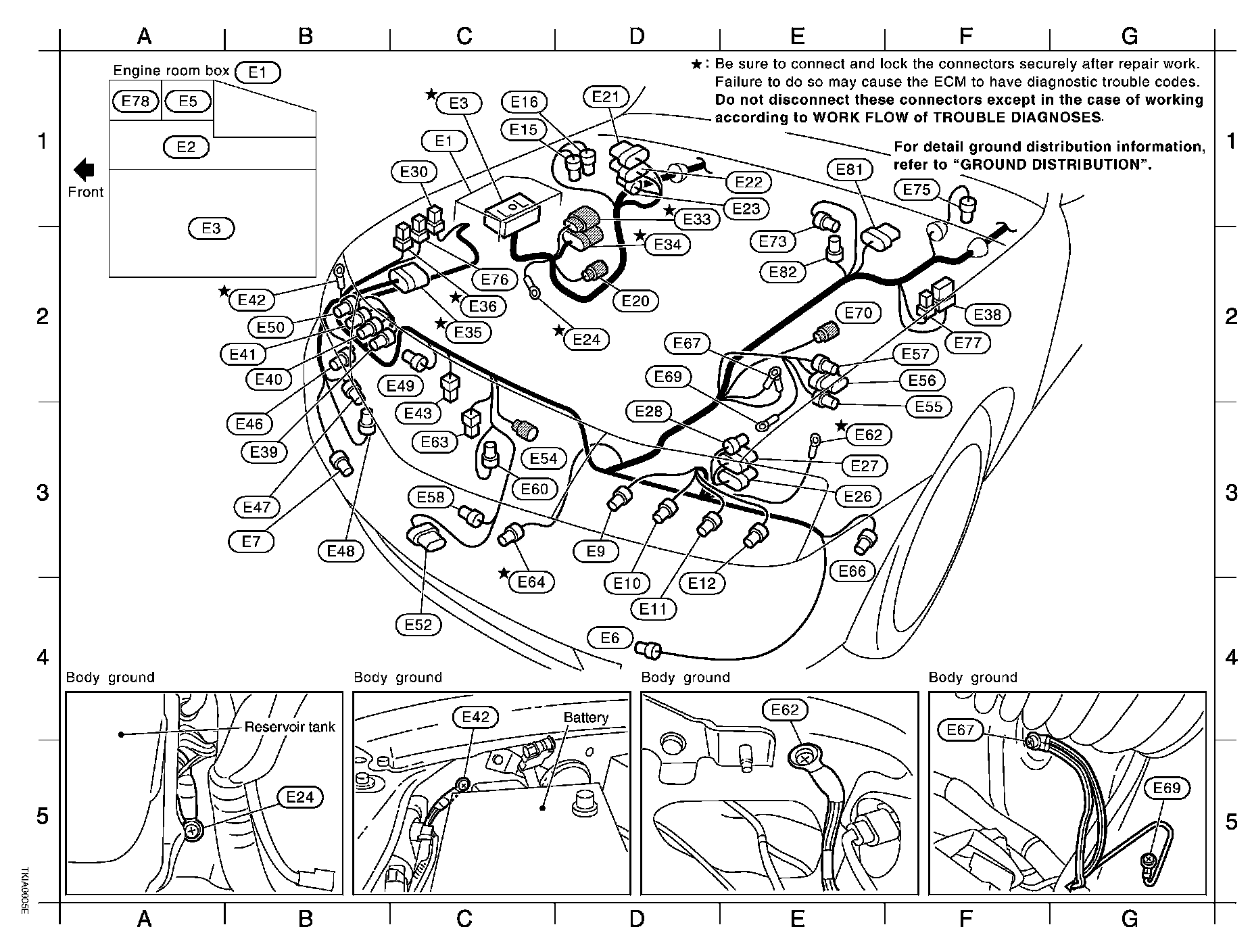

Engine Room Harness - Engine Compartment Part 1:

Engine Room Harness - Engine Compartment Part 2:
