Wiring Diagram

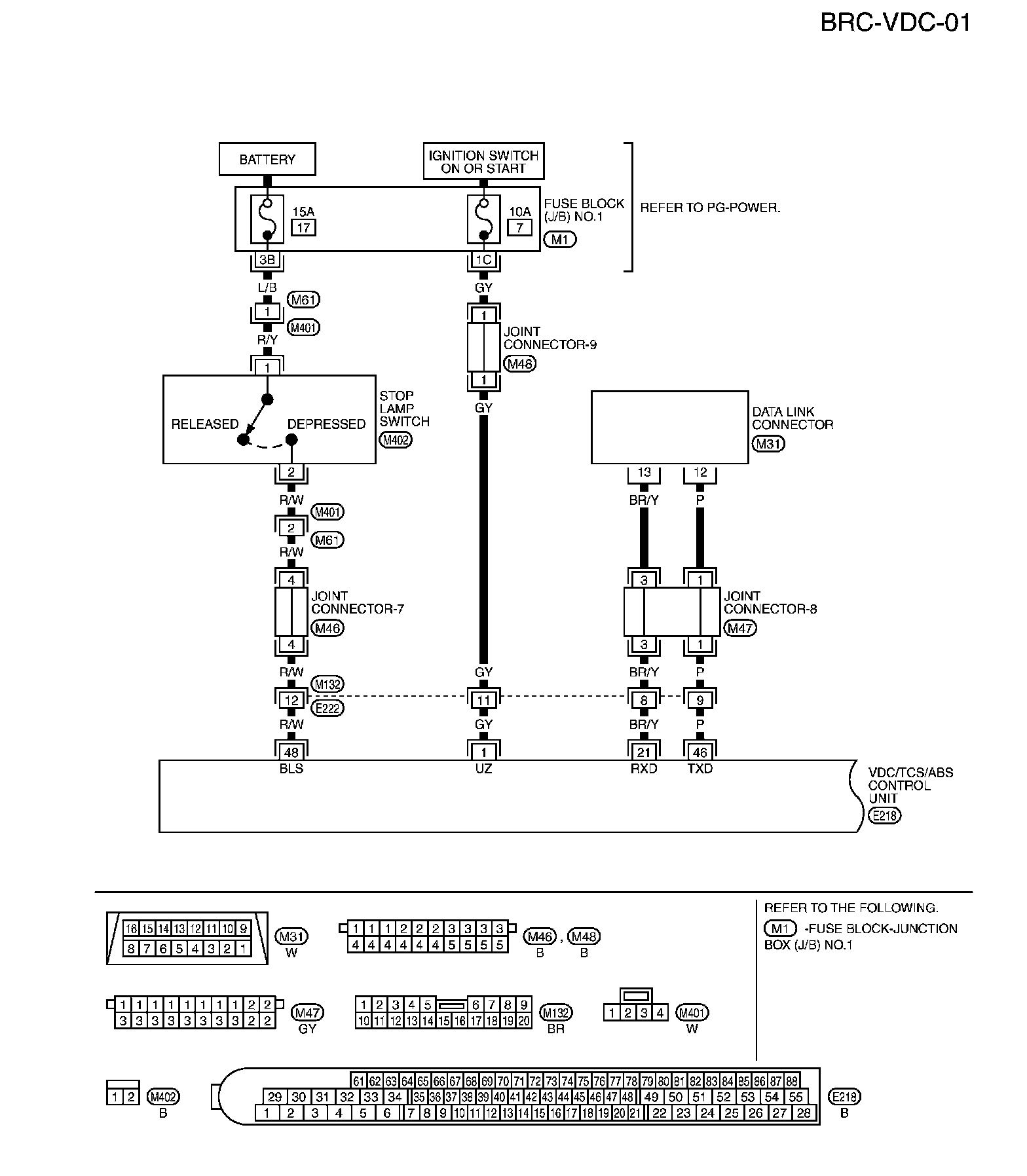

BRC-VDC-01:

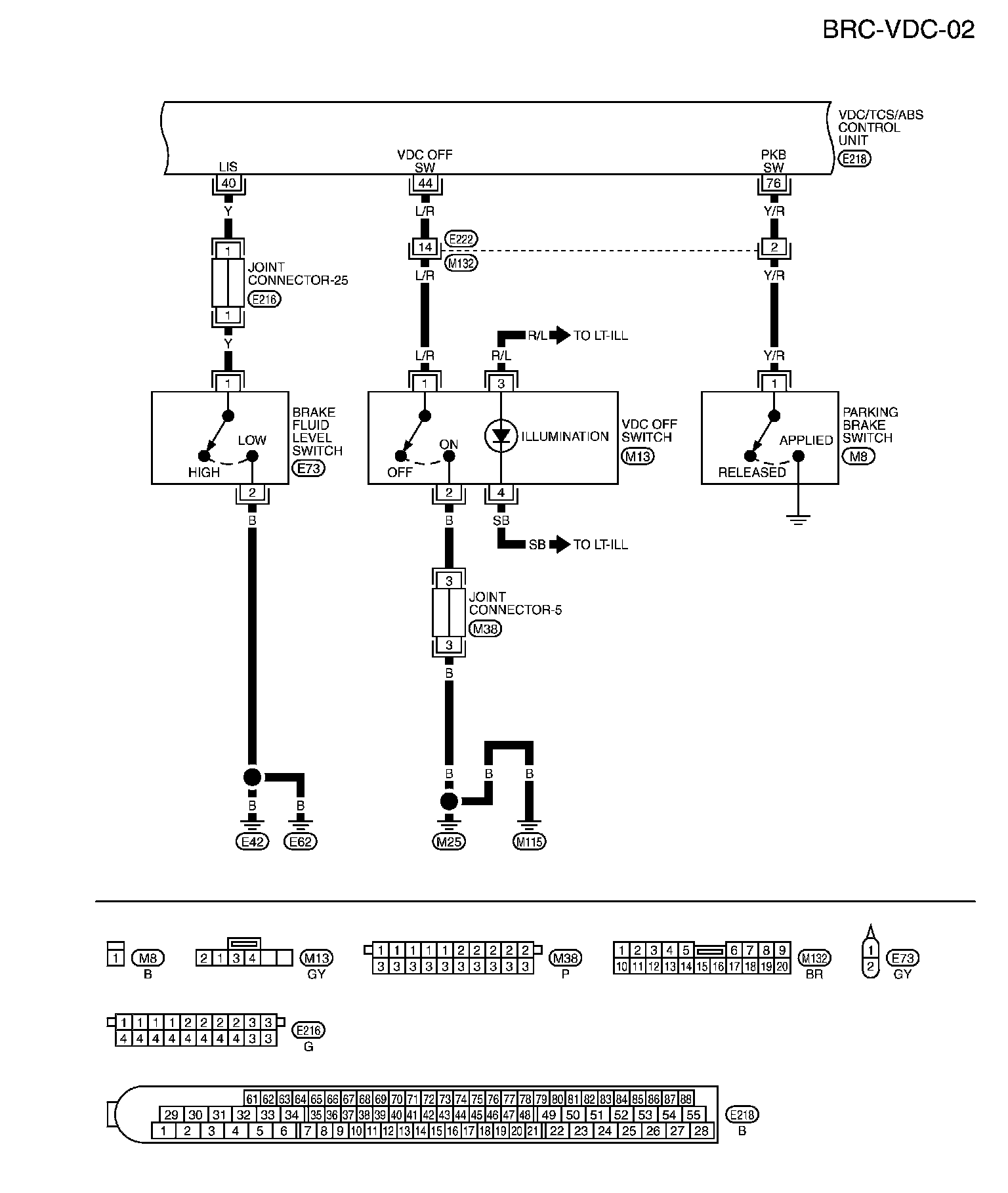

BRC-VDC-02:

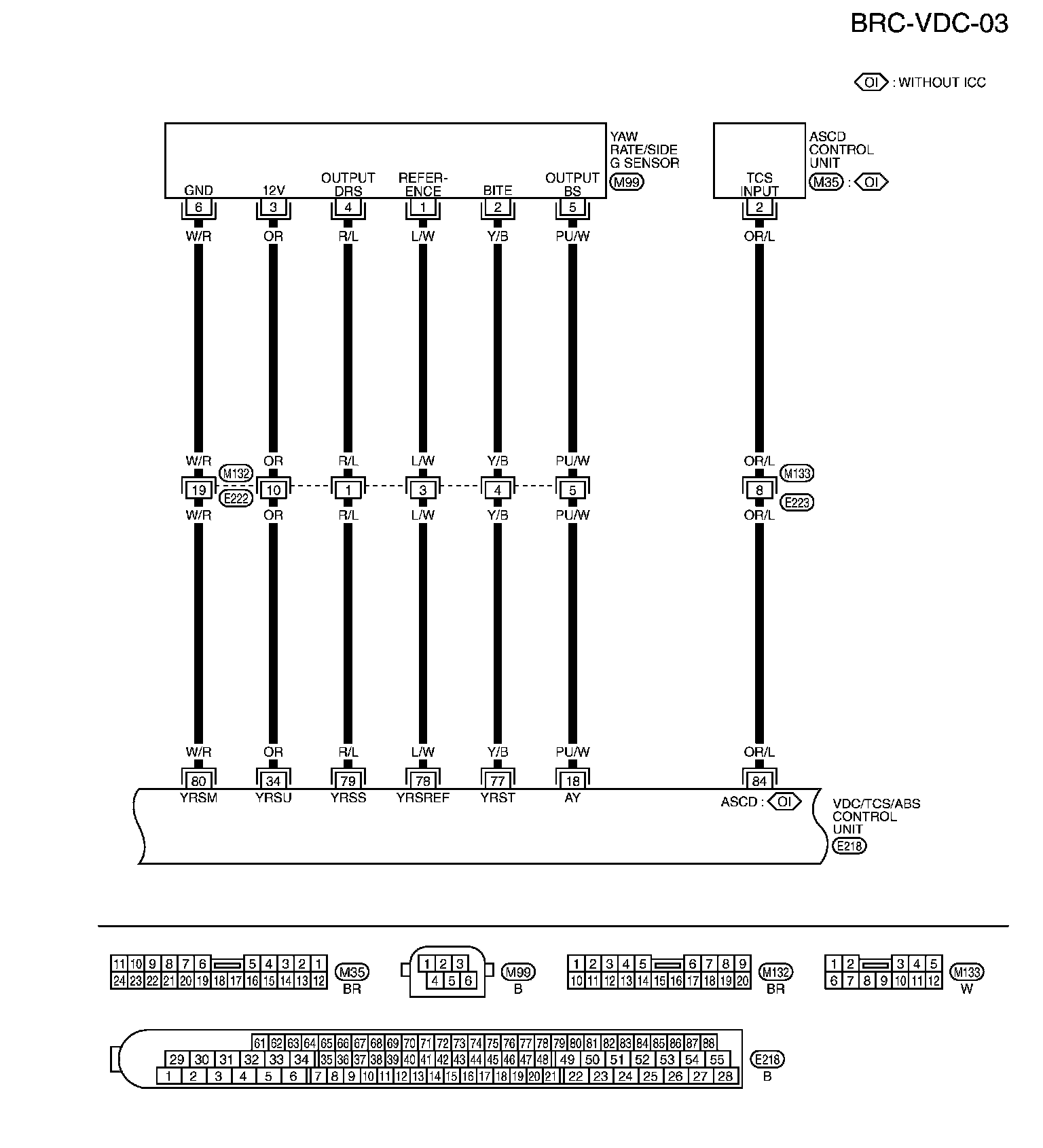

BRC-VDC-03:
BRC-VDC-04:

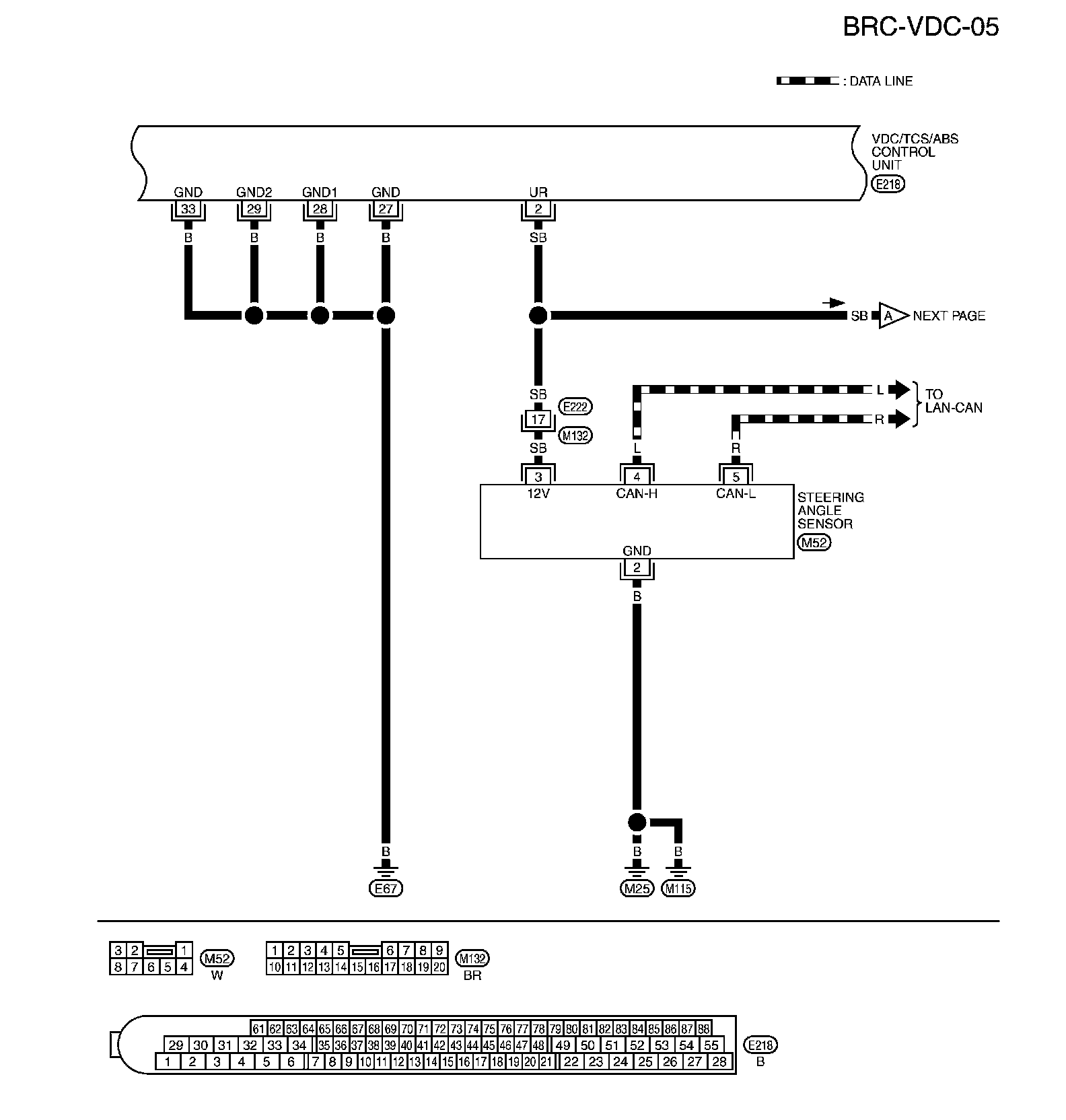

BRC-VDC-05:

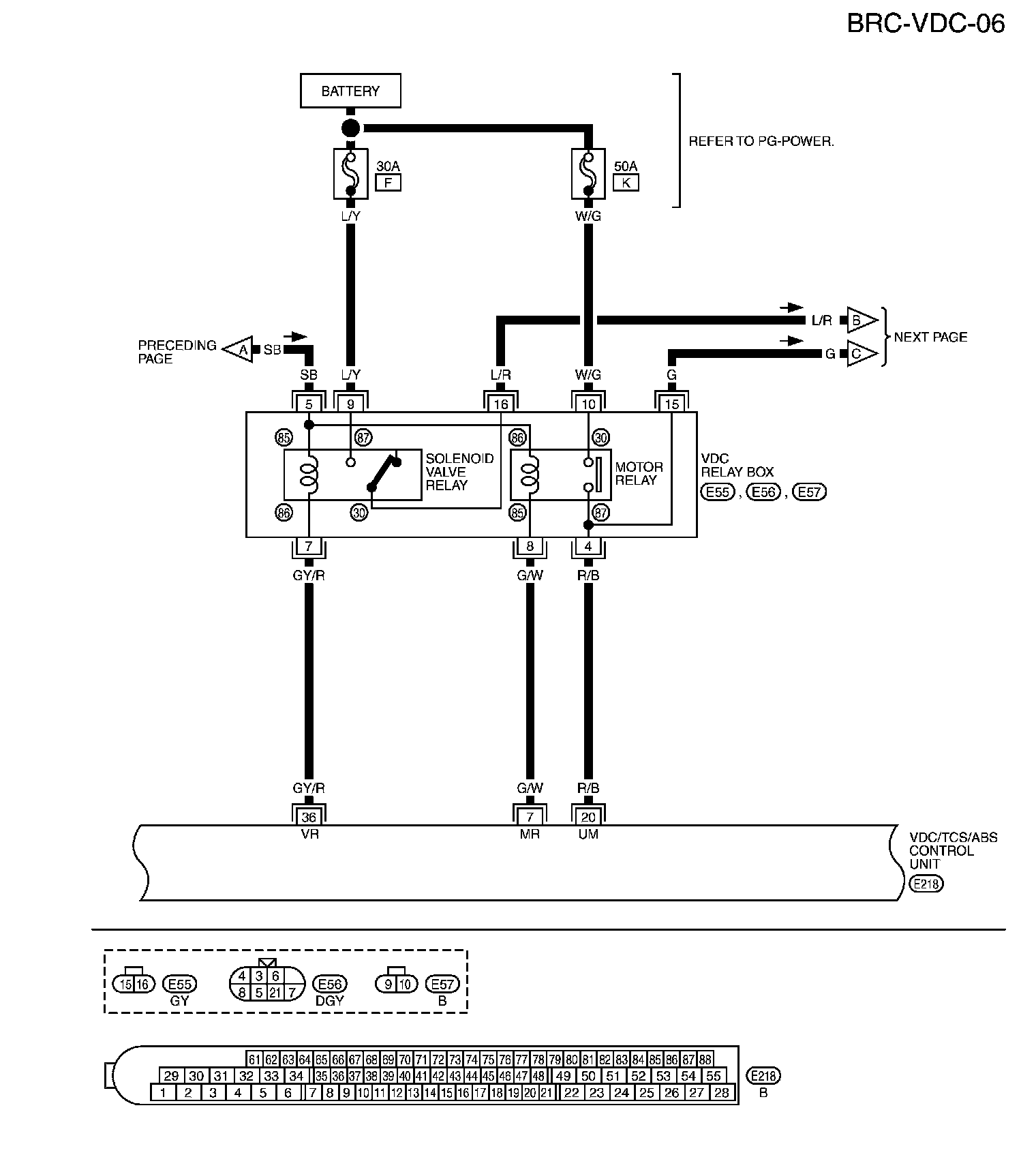

BRC-VDC-06:

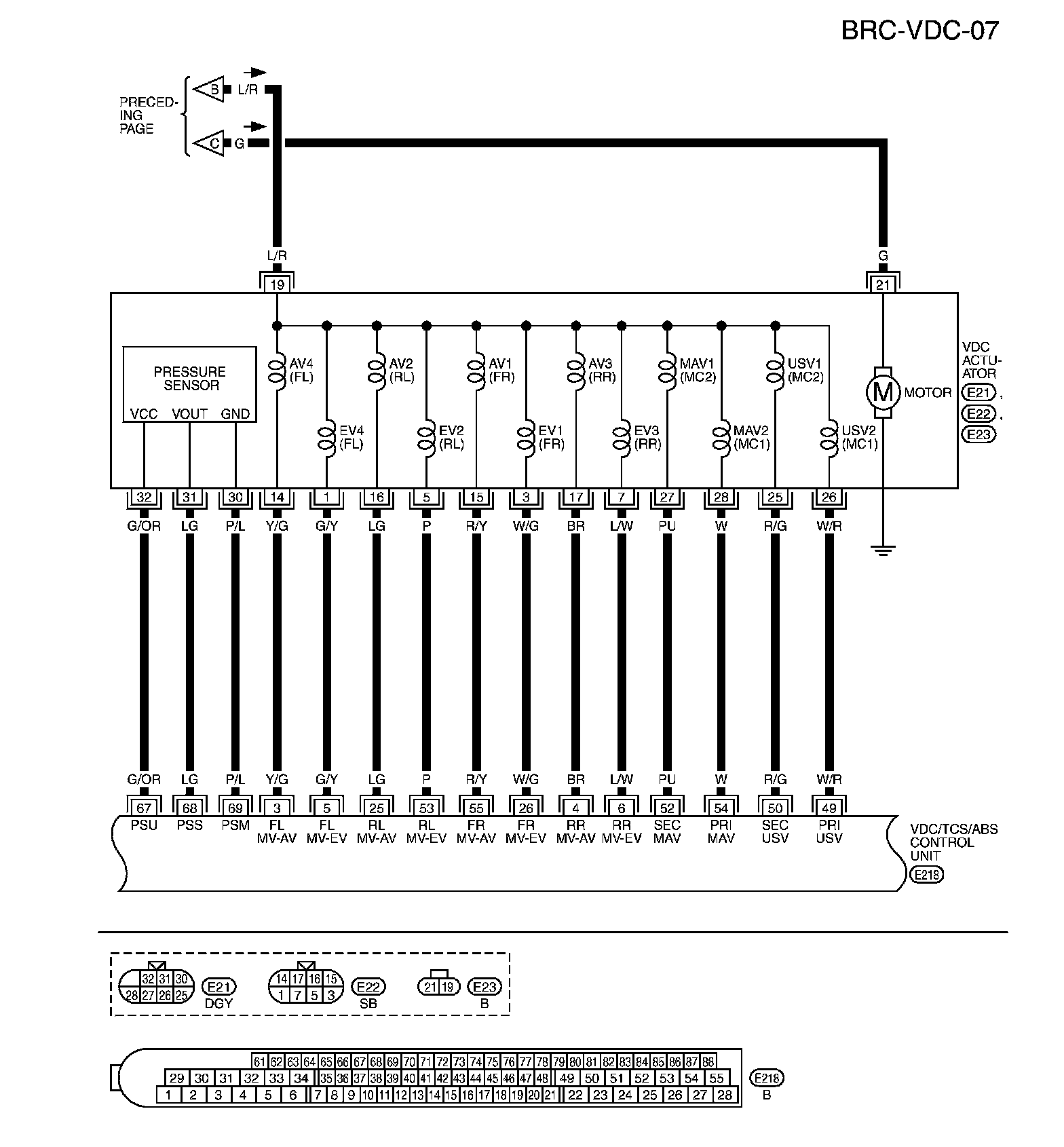

BRC-VDC-07:

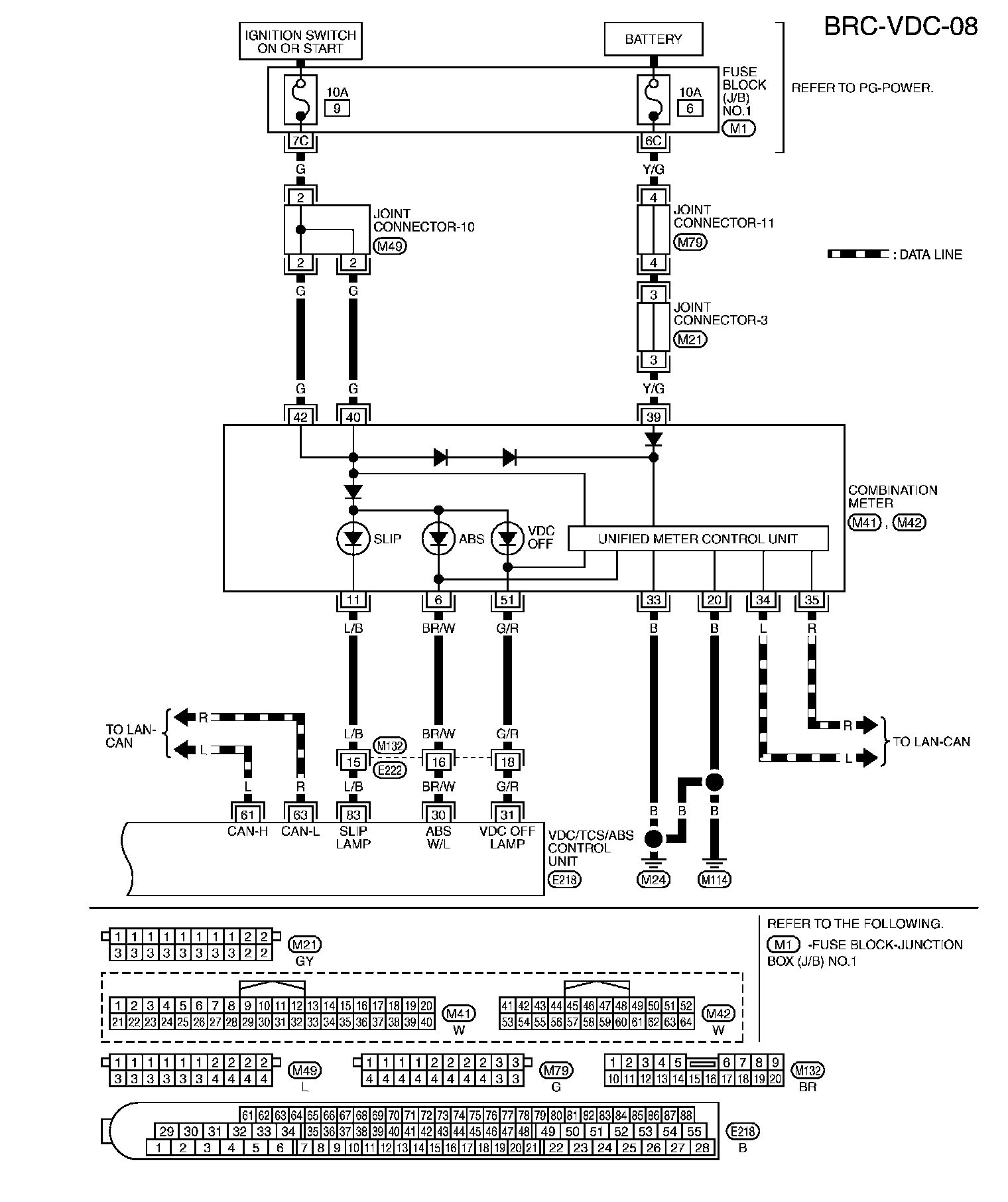

BRC-VDC-08:
Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
