Refrigerant Pressure Sensor / Switch, HVAC

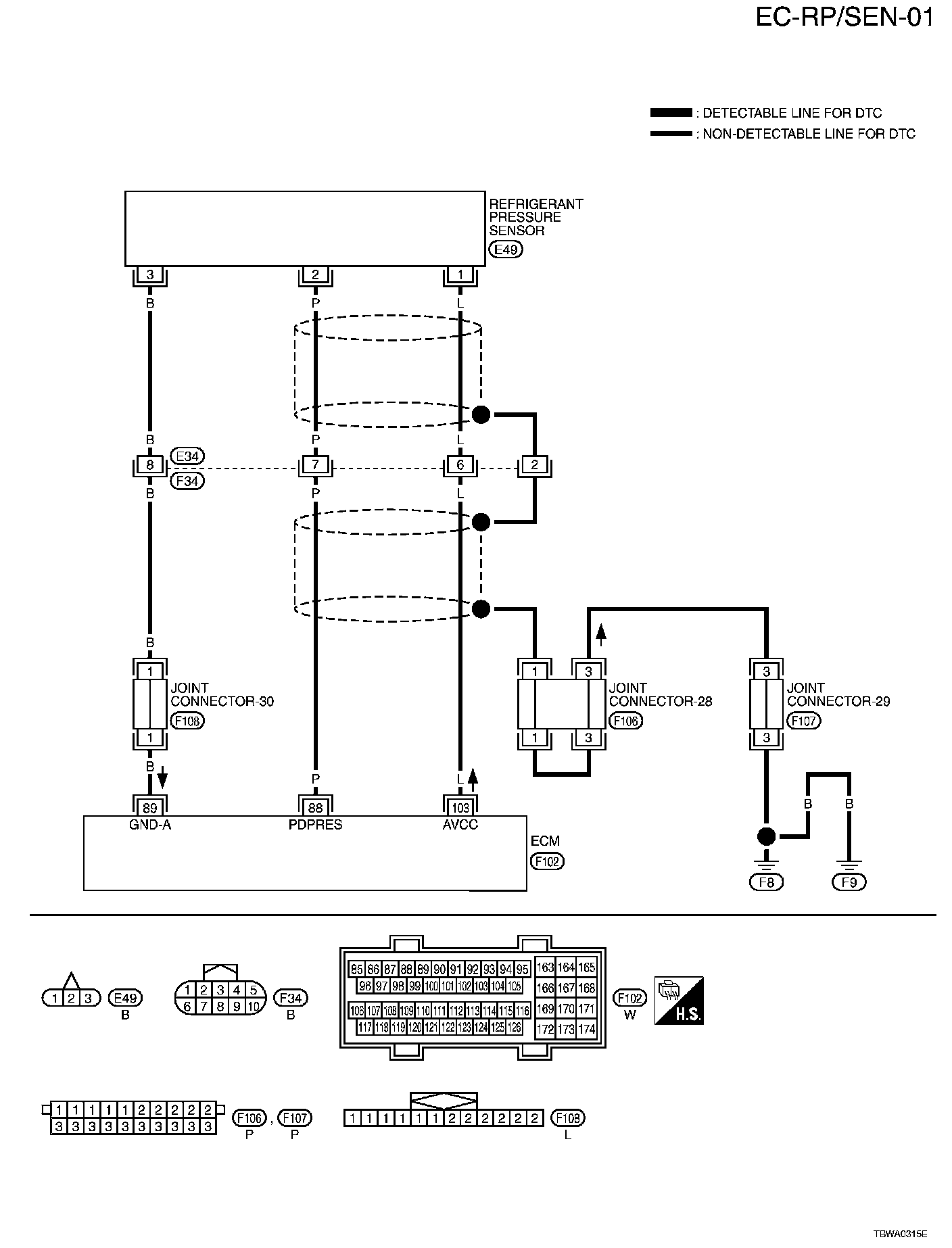

EC-RP/SEN-01:
Diagrams
: Other diagrams referred to by name within these diagrams can be found at
Diagrams by Diagram Name
.
Diagrams By Diagram Name
