Voice Activated Control System Schematic
Voice Activated Control System Schematic

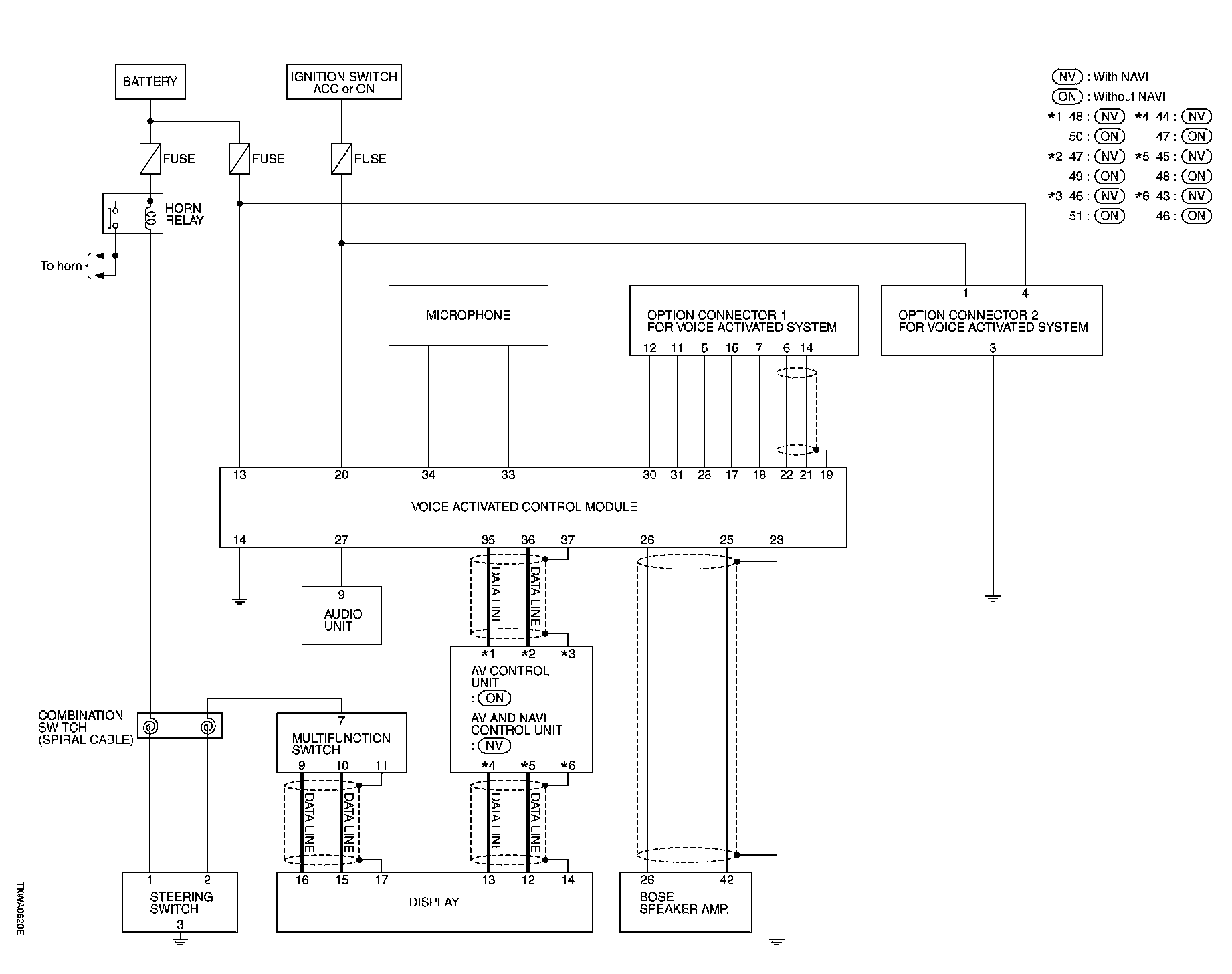

Voice Activated Control System Schematic:
