Axle Shaft Assembly

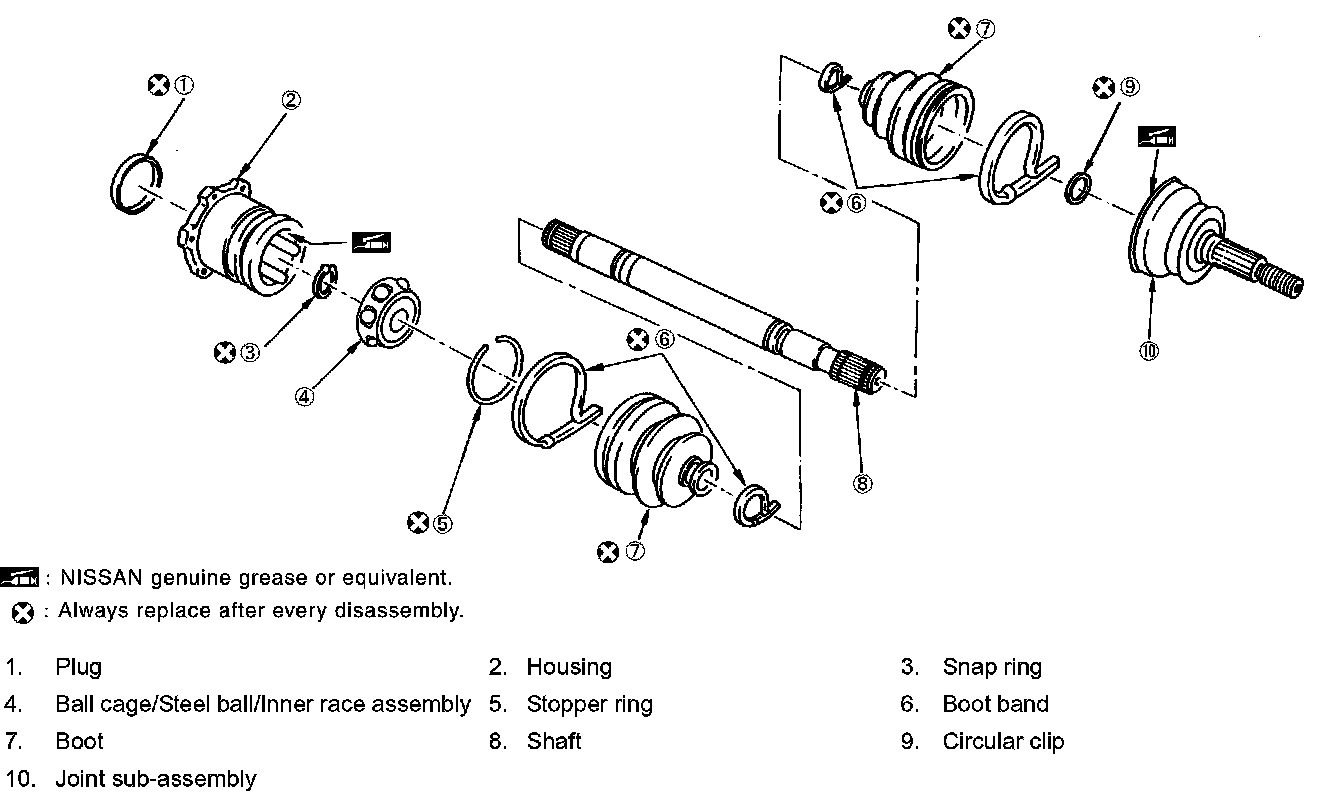

Axle Shaft Assembly
REAR DRIVE SHAFT
Removal and Installation
Disassembly and Assembly
