Cylinder Head Assembly
>>
System Diagram

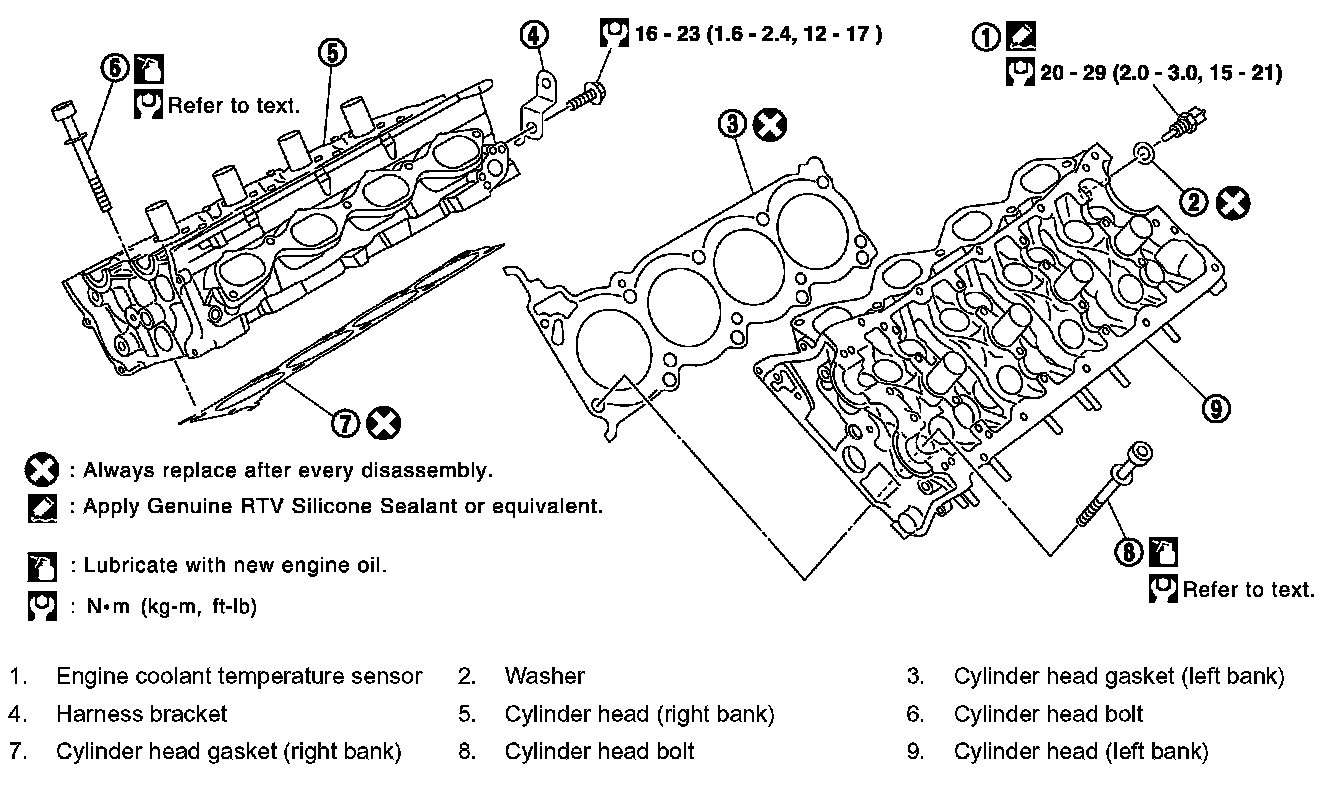

System Diagram
Cylinder Head Disassembly:
Cylinder Head Assembly Removed:
