Timing Components: Specifications

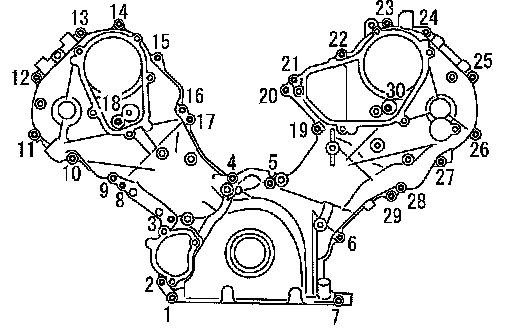

Timing Chain (1 Of 2):

Timing Chain (2 Of 2):

Timing chain slack guide 15.7 - 17.7 Nm (1.6 - 1.8 kg-m, 12 - 13 ft. lbs.)
Timing chain tension guide 15.7 - 17.7 Nm (1.6 - 1.8 kg-m, 12 - 13 ft. lbs.)
Chain tensioner 6.4 - 7.5 Nm (0.66 - 0.76 kg-m, 57 - 66 inch lbs.)-2
Chain tensioner cover 8.1 - 9.5 Nm (0.83 - 0.96 kg-m, 72 - 84 inch lbs.)-2
Auto tensioner (Used for alternator, water pump and A/C compressor); 19.6 - 23.5 Nm (2.0 - 2.4 kg-m, 15 - 17 ft. lbs.)
Auto tensioner (Used for power steering pump belt); 19.6 - 23.5 Nm (2.0 - 2.4 kg-m, 15 - 17 ft. lbs.)
Camshaft sprocket 147 - 157 Nm (15.0 - 16.0 kg-m, 109 - 115 ft. lbs.)

Tighten crankshaft pulley bolt:

^ Lock crankshaft with a hammer handle or similar tool to tighten bolt.
^ Perform the following steps for angular tightening:
a. Apply engine oil onto threaded parts of bolt and seating. area.





b. Select one most visible notch of the four on bolt flange. Corresponding to the selected notch, put a mating mark (such as paint) on crankshaft pulley.
Crankshaft pulley bolt torque
Step 1 : 93.1 Nm (9.5 kg-m, 69 ft. lbs.)
Step 2 : additional 90° (angle tightening)

Rotate crankshaft pulley in normal direction (clockwise when viewed from engine front) to check for parts interference.
