Cigarette Lighter: Service and Repair

REMOVAL

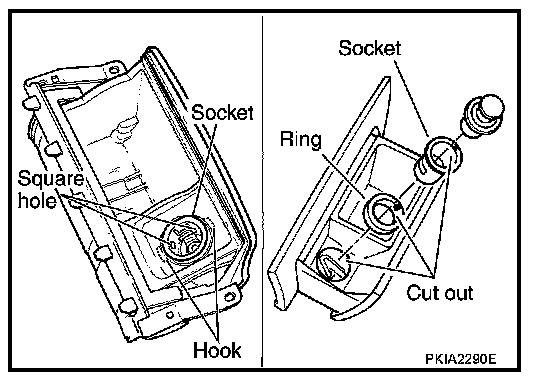

1. Remove A/T console finisher. Service and Repair
2. Pull out cigarette lighter.




3. Remove socket from the ring, while pressing the hook on the ring out from square hole.
4. Press out ring from the back of ashtray.

INSTALLATION
Install in the reverse order of removal.
