Removal and Installation

REMOVAL




1. Remove cluster lid A. Refer to "INSTRUMENT PANEL ASSEMBLY".

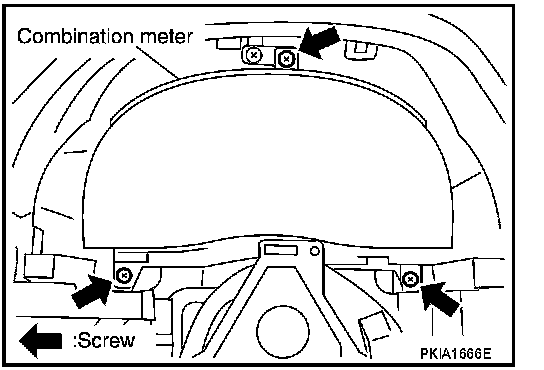

2. Remove screws (3) with power tool, and disconnect connectors.




3. While pulling combination meter upper-side forward, pull it out.

CAUTION: To prevent it from being damaged by interference with the meter bracket, protect the meter with cloth.

INSTALLATION
Install in the reverse order of removal.
