Description of On-Board Diagnosis

On Board Diagnosis

ON BOARD DIAGNOSTIC RESULTS INDICATOR LAMP
- Map lamps and step lamps (all seats) act an the indicators for the on board diagnosis.

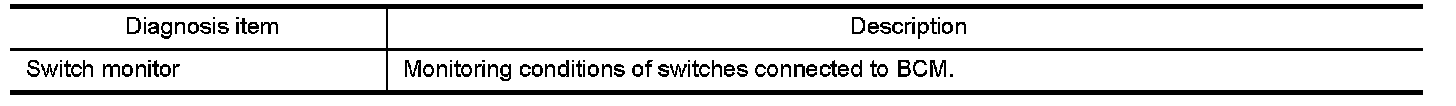

Diagnosis Item:

Switch Monitor
Perform the diagnosis on the switch system to each control unit.

How To Perform Swith Monitor:

How to Perform Switch Monitor




Description
In this mode, when BCM detects the input signal from a switch in IVMS as shown, the detection is indicated by the map lamp and front step lamps with buzzer.




Switch Monitor Item
The status of the switch (except the ignition switch, interior lamp switch, and map lamp switch) as input to each control unit can be monitored.

Cancel of Switch Monitor
- Turn ignition switch OFF.
- Drive the vehicle at more than 7 km/h (4 MPH).
