Interior Lamp

FRONT INTERIOR LAMP

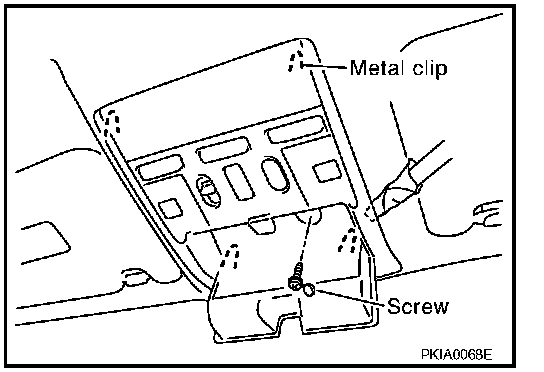

1. Open the front interior lamp box and remove the screw.
2. Insert a clip driver or a suitable tool and disengage the metal clip fittings of the front interior lamp.
3. Disconnect the connector and remove the front interior lamp.

PERSONAL LAMP (REAR PERSONAL LIGHT)




1. Using a clip driver or a suitable tool, press and remove the metal clip of the personal lamp.
2. Disconnect the personal lamp connector.
