Horn: Service and Repair

REMOVAL
1. Remove air duct. Refer to "ENGINE ROOM COVER".
2. Disconnect horn connectors.

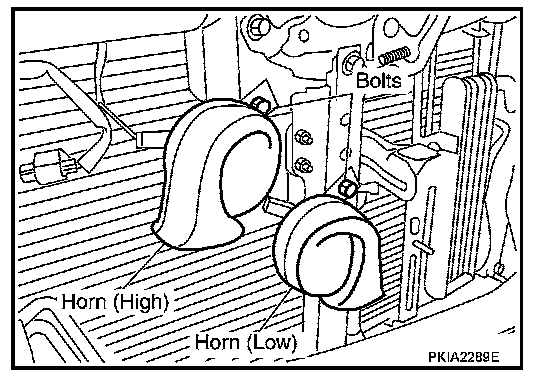

3. Remove horn mounting bolt and remove horn from vehicle.

INSTALLATION
Tighten horn bolt to the specified torque.

Horn mounting bolt
Tightening Torque : 15.7 - 18.6 Nm (1.6 - 1.8 kg-m, 12 - 13 ft-lb)
