Marker Lamp: Service and Repair

FRONT SIDE MARKER LAMP

Removal




1. Remove fender protector (front). Refer to EI-21, "FENDER PROTECTOR" in "EI".

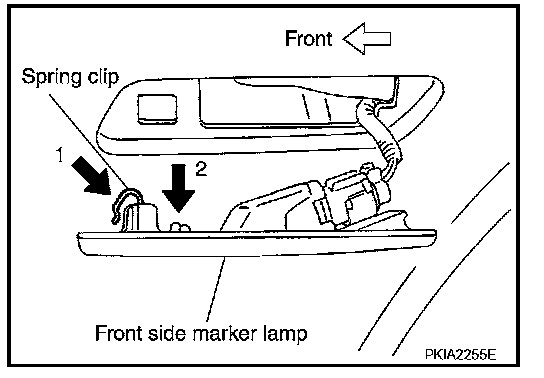

2. While keep pressing the spring clip of lamp with a pair of pliers, pull the lamp unit toward outside of vehicle.
3. Disconnect the bulb socket connector and remove the lamp from the vehicle.

Installation
Install in the reverse order of removal.

REAR SIDE MARKER LAMP

Removal




1. Remove rear combination lamp. Refer to "REAR COMBINATION LAMP".

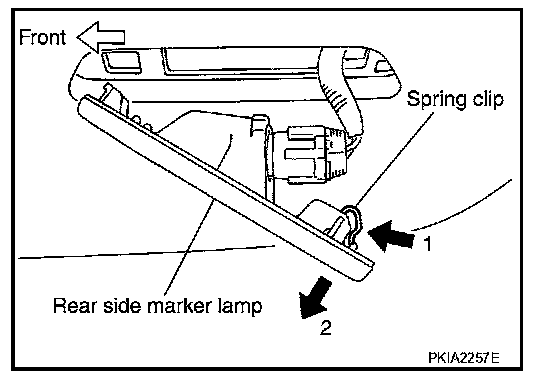

2. While keep pressing the spring clip of lamp with a flat blade screwdriver, pull the lamp unit toward out of vehicle.
3. Disconnect the bulb socket connector and remove the lamp from the vehicle

Installation
Install in the reverse order of removal.
