Power Steering Fluid

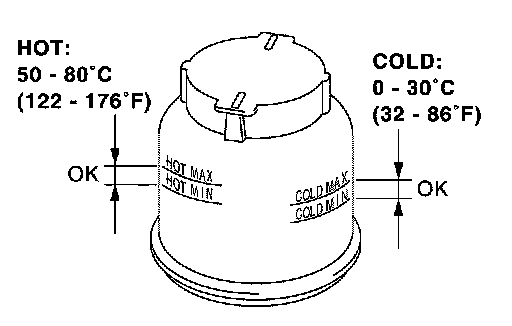

Check fluid level in reservoir tank with engine off.

Use "HOT" range at fluid temperatures of 50 to 80°C (122 to 176°F)
Use "COLD" range at fluid temperatures of 0 to 30°C (32 to 86°F).


Capacity Approx. 1.0 liters (1-1/8 US quarts 7/8 Imp quarts)
