System Specifications

COOLING SYSTEM

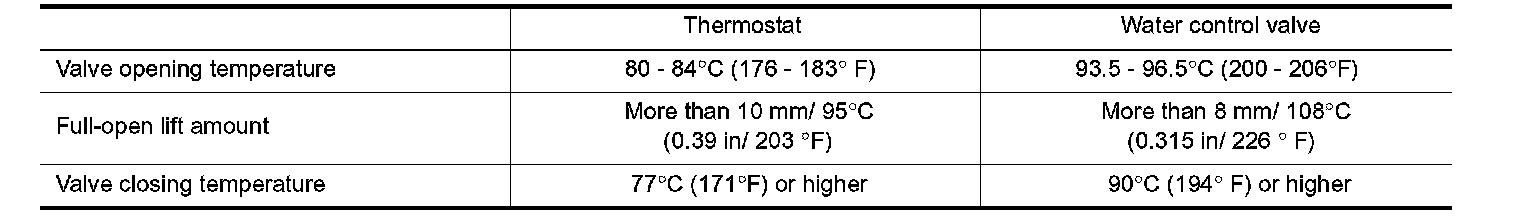

Thermostat/Water Control Valve Standard Values:

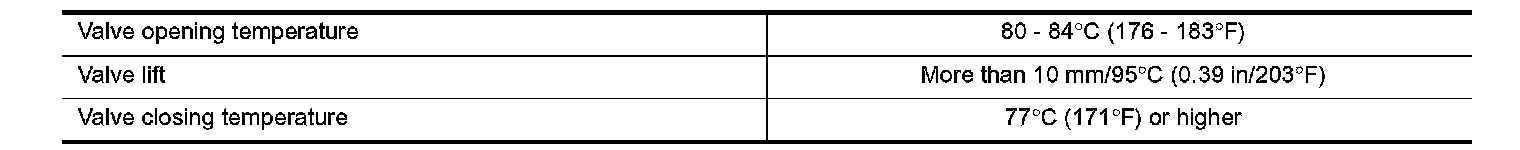

THERMOSTAT:

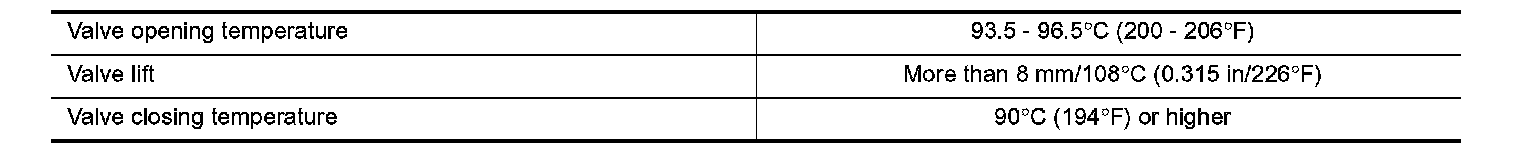

WATER CONTROL VALVE:

RADIATOR:

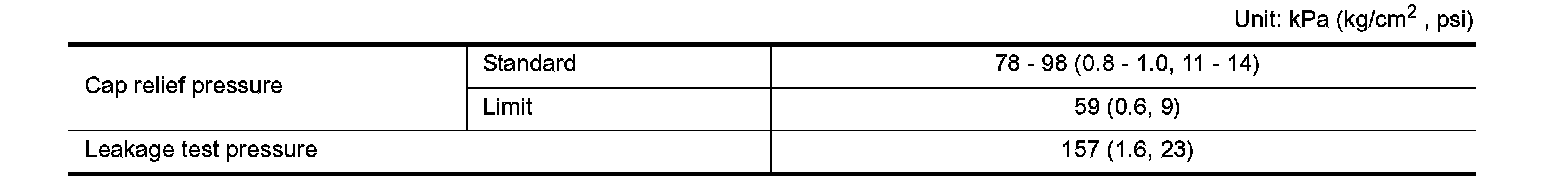

Radiator Cap Relief Pressure
Standard:.78-98 kPa (0.8-1.0 kg/cm2, 11-14 psi)
Limit: 59 kPa (0.6 kg/cm2, 9 psi)


Radiator
Leakage test pressure 157 kPa (1.6 kg/cm2, 23 psi)
