Overhaul (Overhaul Components)

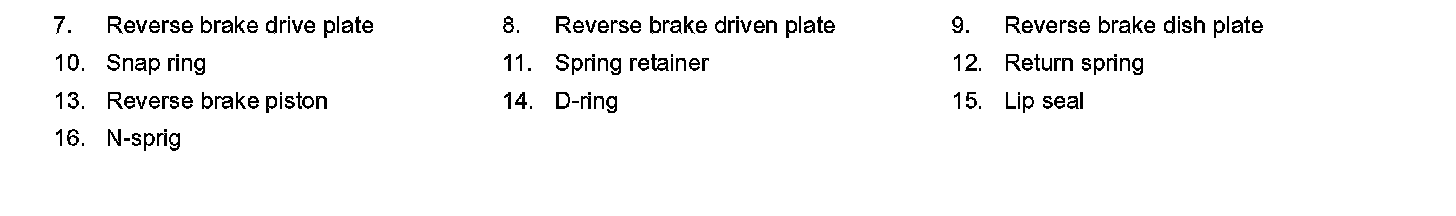

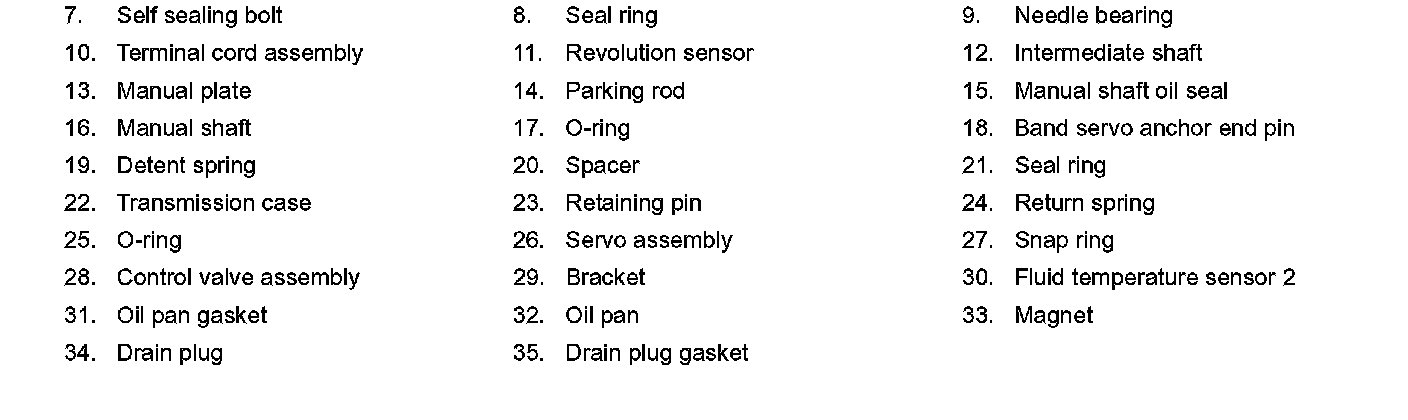

Components

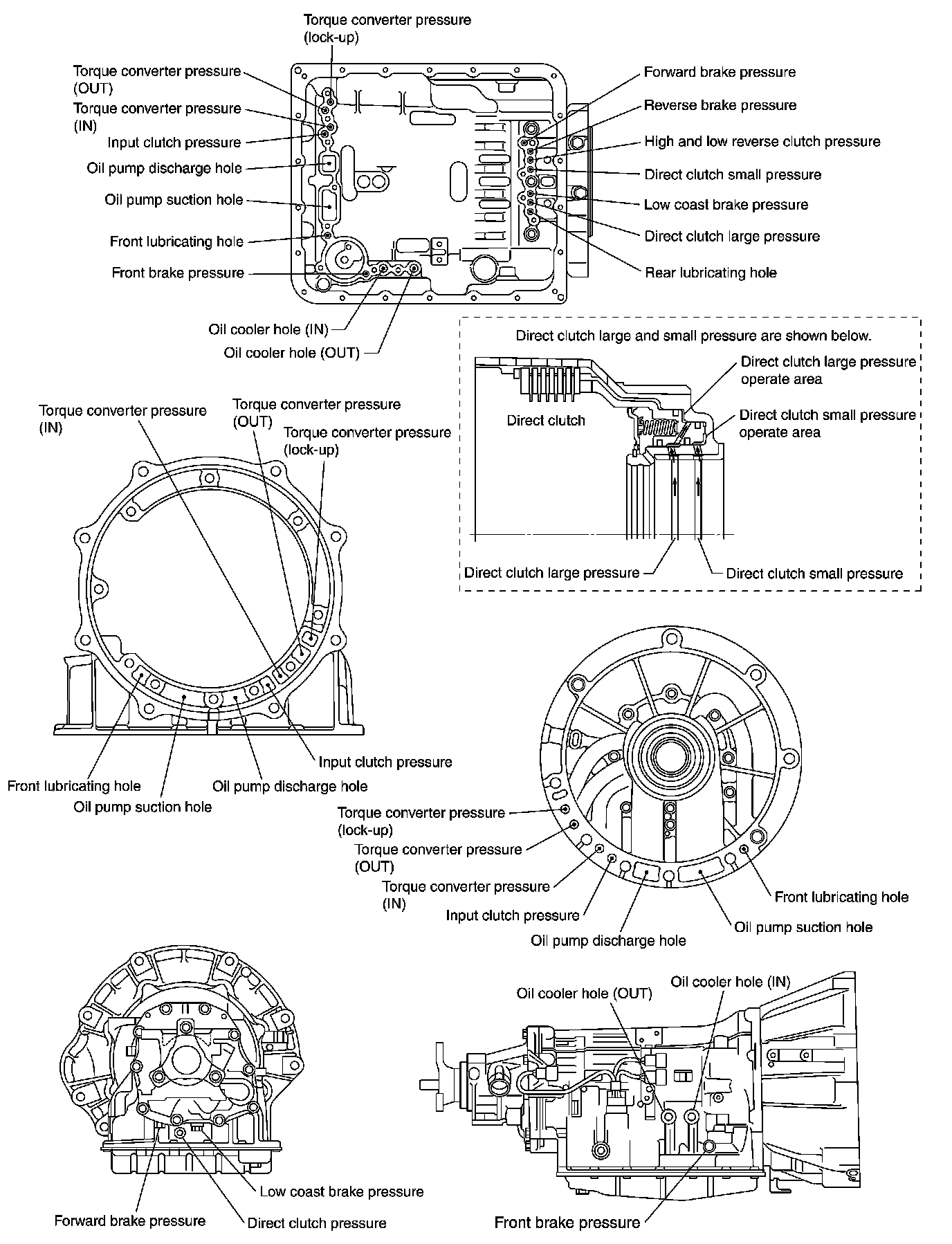

Oil Channel

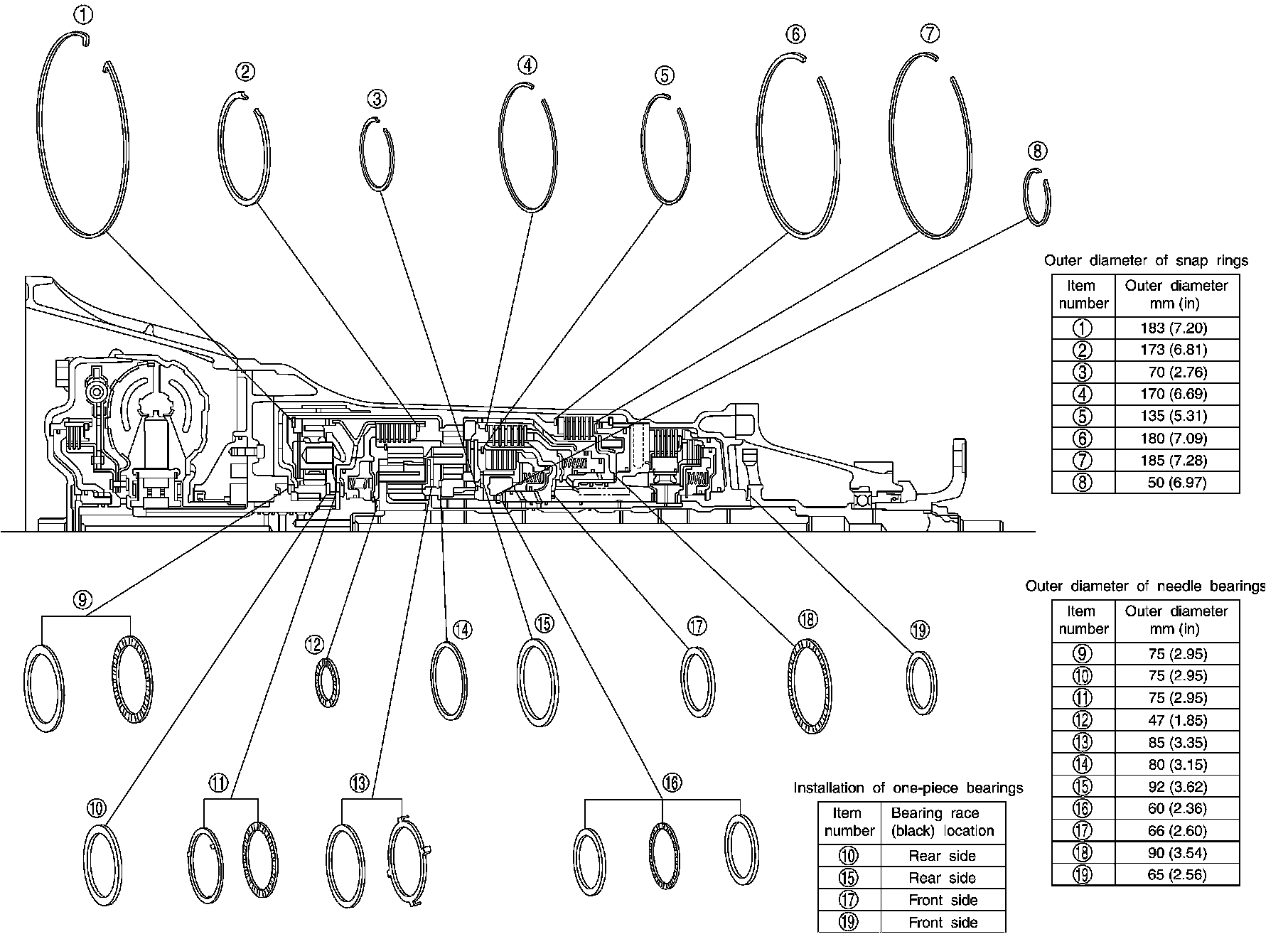

Locations of Adjusting Shims, Needle Bearings, Thrust Washers and Snap Rings
