With Manufacturer's Scan Tool (CONSULT-II)

1. With the ignition switch OFF, connect CONSULT-II and CONSULT-II CONVERTER to the data link connector, then turn ignition switch ON.

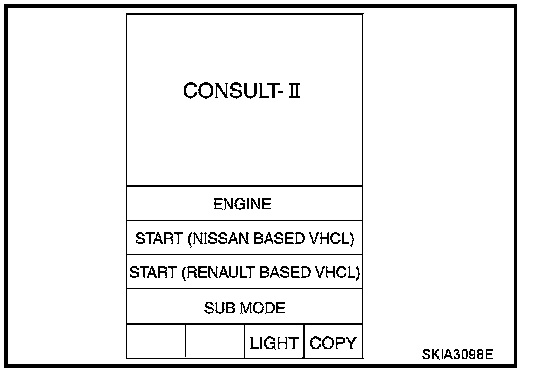

2. Touch "START (NISSAN BASED VHCL)".

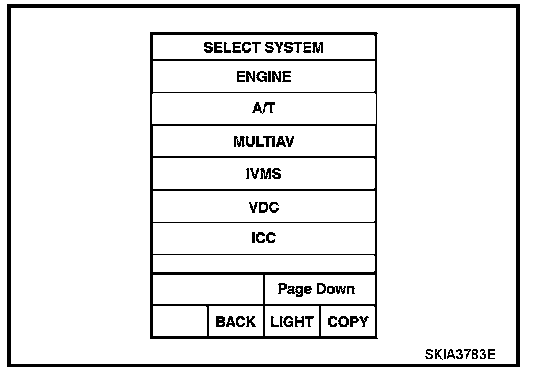

3. Touch "IVMS" on "SELECT SYSTEM" screen. If "IVMS" is not indicated, go to "CONSULT-II Data Link Connector (DLC) Circuit". CONSULT-II Checking System




4. Check the model specification, touch either "WITH SUNROOF" or "WITHOUT SUNROOF".
5. Touch "OK". If the selection is wrong, touch "CANCEL".
6. Select the desired part to be diagnosed on the "SELECT TEST ITEM" screen.
