Without Scan Tool

SWITCH MONITOR

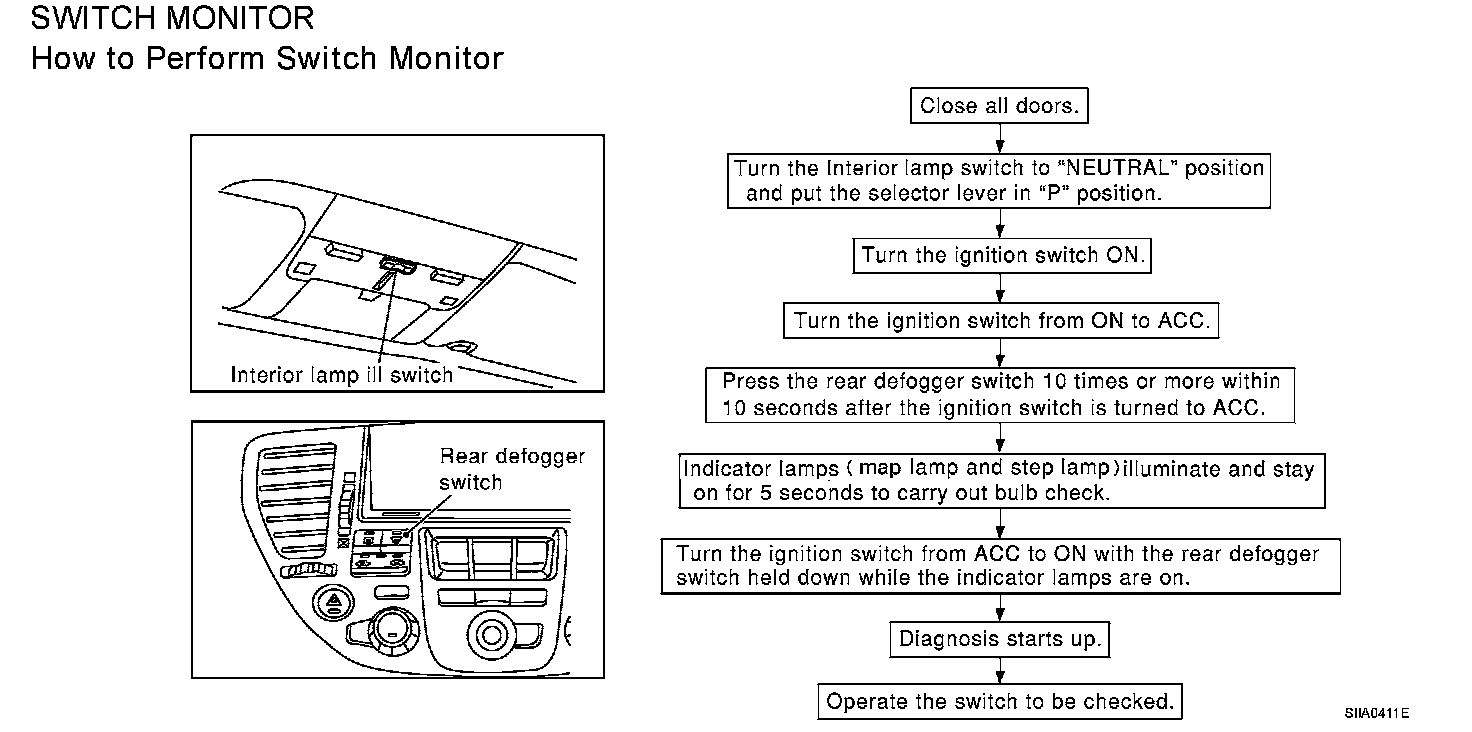

How to Perform Switch Monitor

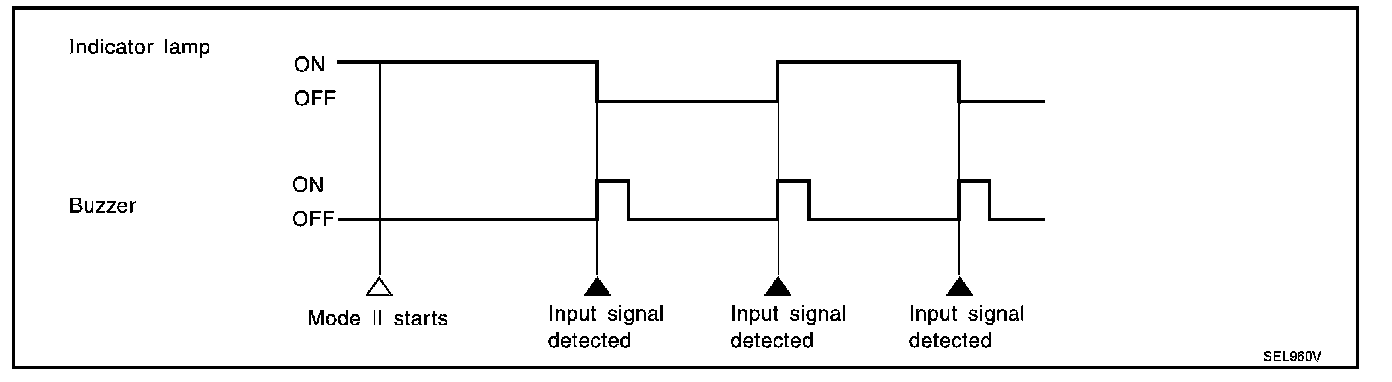

Diagnosis Result Display
- Detects the status change (switch ON/OFF operation) of the switch to be checked, and turns on/off the indicator lamps (the map lamp and step lamp). Also sounds the buzzer for 0.5 seconds.




- If a malfunction is detected, no indicator lamp and buzzer react.

Cancel of Switch Monitor
- Turn ignition switch OFF.
- Drive the vehicle at more than 7 km/h (4MPH).
